Silent Type

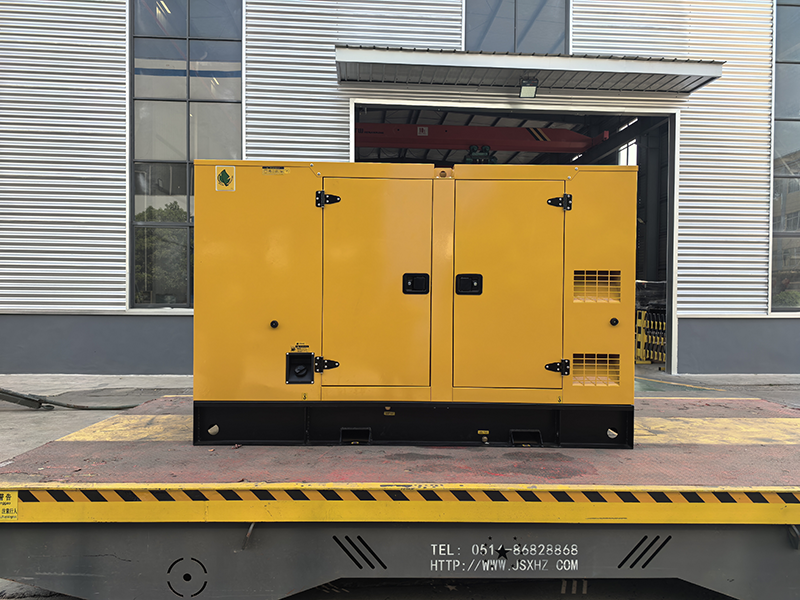

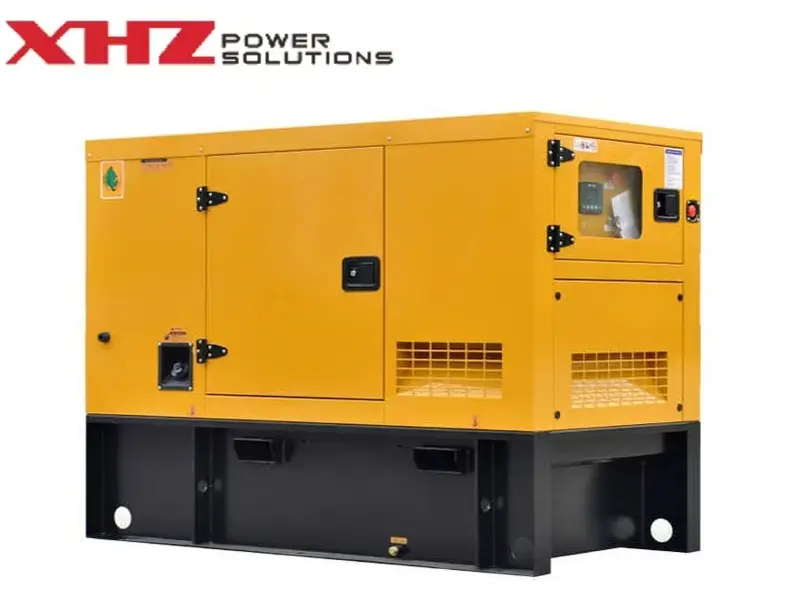

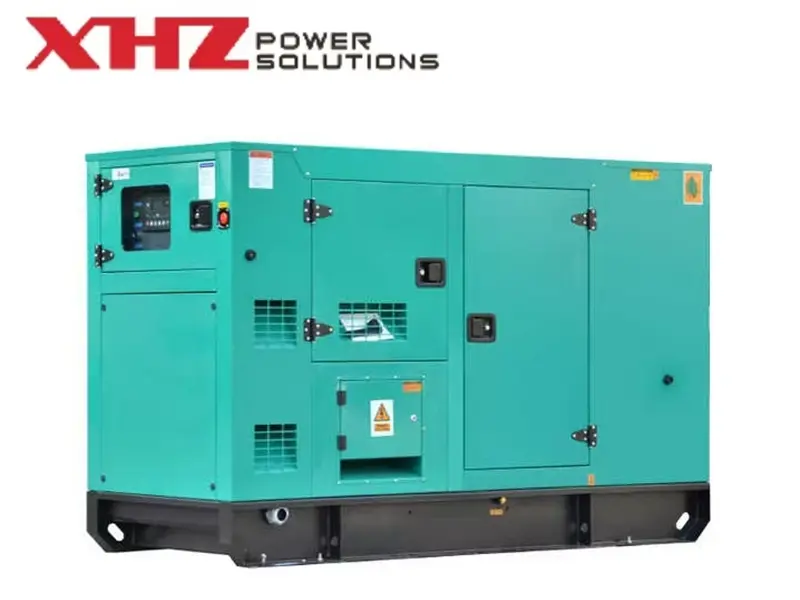

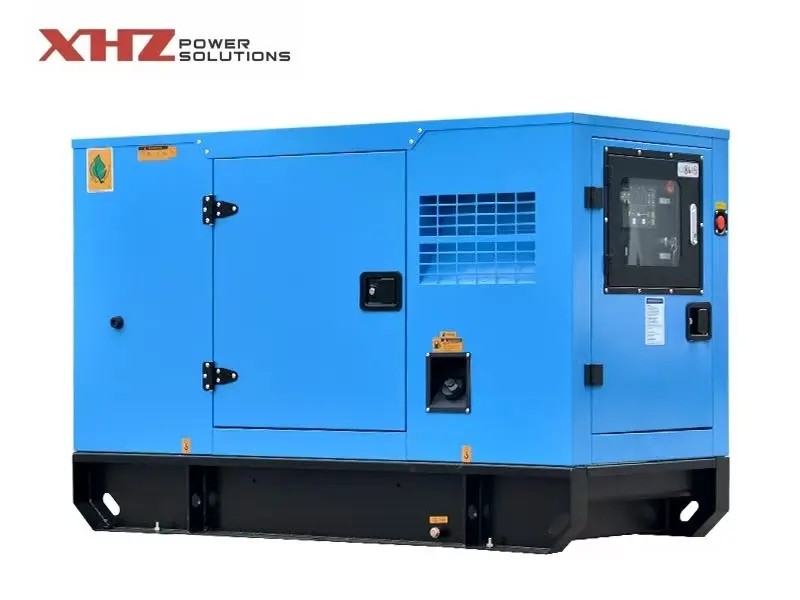

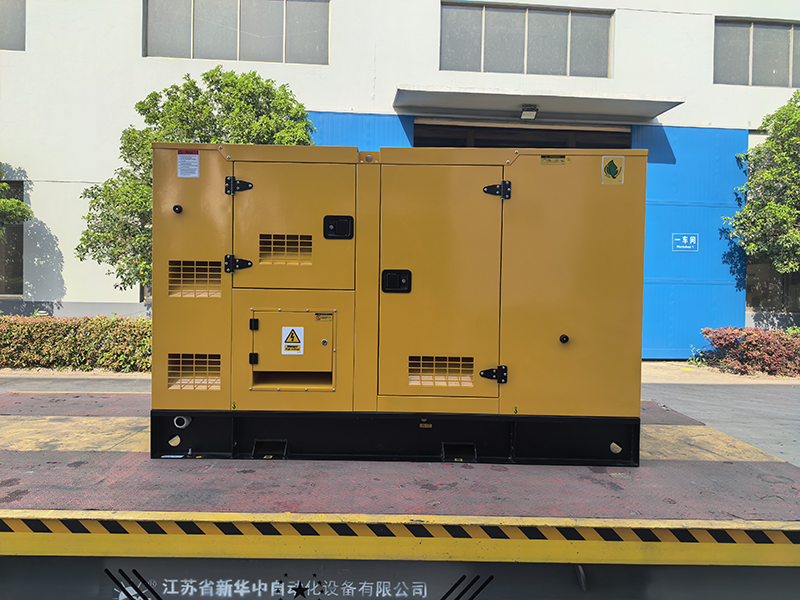

Silent generator 20KVA-80KVA
|
Power kVA |
Lenght (mm) |
Widht (mm) |
Height (mm) |
Fuel tank (L) |
20-30 |
1900 |
1000 |
1240 |
150 |
30-40 |
2200 |
1000 |
1550 |
180 |
50-80 |
2400 |
1000 |
1550 |
200 |
100-150 |
3000 |
1100 |
1650 |
350 |
150-200 |
3300 |
1300 |
1800 |
450 |
250-400 |
4000 |
1700 |
2000 |
350 |
600-700 |
4700 |
2100 |
2450 |
800 |
800-1000 |
5800 |
2250 |
2520 |
1300 |
1000-1500 |
6058 |
2438 |
2896 |
1000-1500 |
1500---- |
12192 |
2438 |
2896 |
1500-2500 |
● The appearance is carefully designed to be compact and beautiful. The box adopts a detachable structure and is made of steel plates,And pre-treatment of steel plate surface. The surface is treated with spray coating technology and coated with high-performance anti-corrosion and anti rust paint;
● High quality coating powder,chemical surface treatment &100-120um coating thickness greatly improving the anti-corrosion and anti rust level.

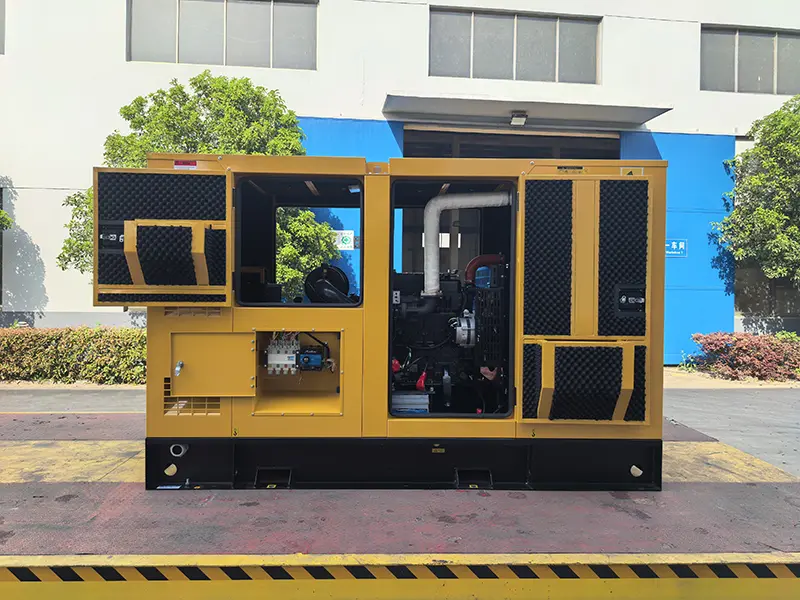

● The excellent ventilation system and measures to prevent thermal radiation ensure that the unit always operates at a suitable ambient temperature. The internal structure of science and the use of specialized noise reducing materials to greatly suppress mechanical noise， reducing noise to between 68db (A) and 75db (A) (measured 7m away from the sound source).
● The super large capacity base fuel tank can provide continuous operation for 8 hours.The built-in base fuel tank with fuel filler set on the shell facilitates refueling.
● Efficient shock absorption measures ensure the smooth operation of the unit;
● The national patent design structure ensures that the outdoor unit is protected from rain, snow, wind and dust, and the surface is resistant to hydrochloric acid mist corrosion;
● Highly integrated enclosure, with smoke exhaust system integrated into the enclosure, eliminating the need for external flue ducts;
● Ceiling Lighting-LED is equipped for easy operation.
● The drainage outlets are all connected to the outside for easy operation.
● The bottom forklift and loading port design enables easy loading and unloading.
SGC 420 CONTROLLE
The SGC 420 controller has an advanced battery charge management capability and is specially designed for AMF applications with a mechanical and electronically controlled engine
Standard Features
● Support automatic, manual and remote start/stop modes;
● Can supervise engine safety, electrical load, site battery backup voltage and shelter temperature to cut down on fuel consumption.
● The real time clock (RXHZC-) precisely logs up to 100 events and conducts data analysis.
● Auto exercise mode (2 events) allows to start and stop the generator set for for a preconfigured time.
● Built-in electronic speed governor is adopted for variable-speed monitoring.
● Able to monitor voltage, frequency, load current and power factor of the generator set.
● Provided with digital outputs of start relay, fuel relay, alarm horn and more.
● Counters for engine starts, engine trips, engine running hours, generator set kWh, kVAh, kVArh and Mains kWh, kVAh, kVArh.
