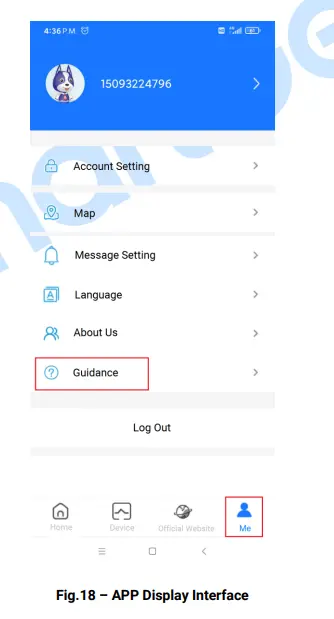

Remote mobile app for controlling and viewing diesel generator sets

Cloud Monitoring Communication Module is  wireless network communication protocol conversion module of all-modes, which can achieve genset (with SCI) connection with Internet. After logging into cloud server, module will receive corresponding genset controller communication protocol from cloud server. Cloud monitoring module can obtain genset data information via RS485, USB, LINK, CAN, or RS232 port, and send the information to related could server via 4G wireless network. Users can monitor genset running status at real time and check genset running records by mobile APP (IOS or Android), or PC etc. terminal device. It not only can realize genset monitoring, but also can be connected with some digital alarm inputs, to realize monitoring of genset entrance guard, prevention of burglary, fire control etc. ancillary facilities. It has GPS positioning function, which can upload the obtained longitude and latitude, altitude information at real time to the corresponding cloud server.

working voltage ：DC(8~35)V

Dimensions (mm)：72.5*105*34(mm)

Installation method：DIN-Rail Mounting

operation temperature：(-25~+70)℃

PERFORMANCE AND CHARACTERISTICS

─ Connect to cloud server via 4G wireless network, one cloud monitoring module for one genset;

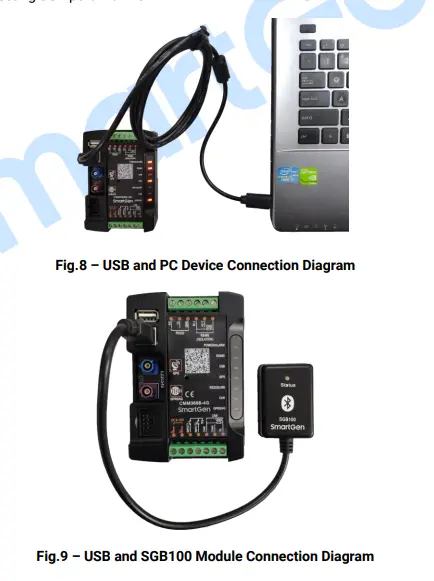

─ Multiple communicating ports with genset control module: RS485, RS232, LINK, CAN port, USB (Host), which can monitor most genset control modules of leading brands internationally;

─ Wide power supply: DC (8~35)V, which can directly use engine build-in starting battery;

─ With ARM-based 32-bit SCM, high integration of system and strong programming ability;

─ GPS positioning function for obtaining genset location information, to realize genset positioning;

─ Apply network data communication protocol of JSON format, upload the genset data changes at real time, meanwhile compression algorithm is applied, which extremely reduces network flow;

─ Immediately upload the data to cloud server when genset alarms occur; ─ Event log memory function, which can ensure data won't get lost when network is not steady;

─ Cloud Modem can be upgraded by 4G network, convenient for module' s maintenance;

─ 2 configurable digital input ports, which can be connected with external alarm signals;

─ Module panel has power and multiple communication status indicators; clear display module working status;
