Cummins Series

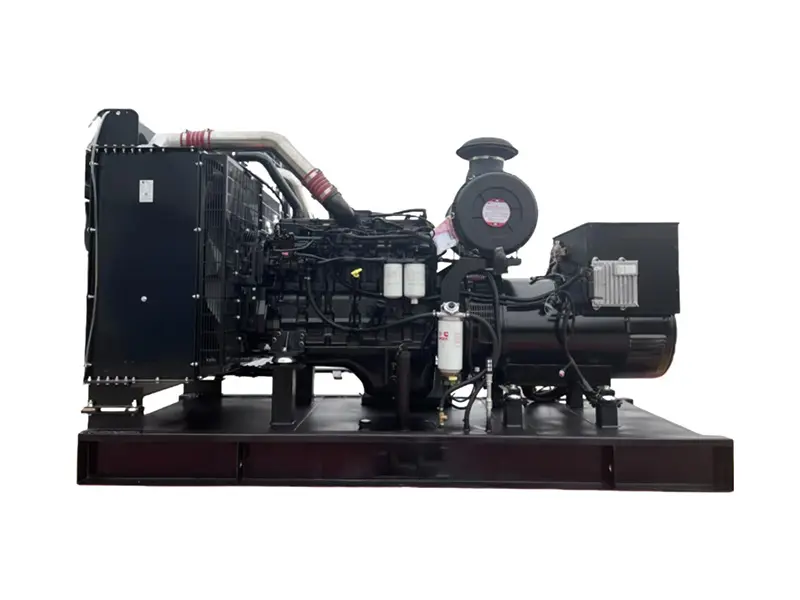

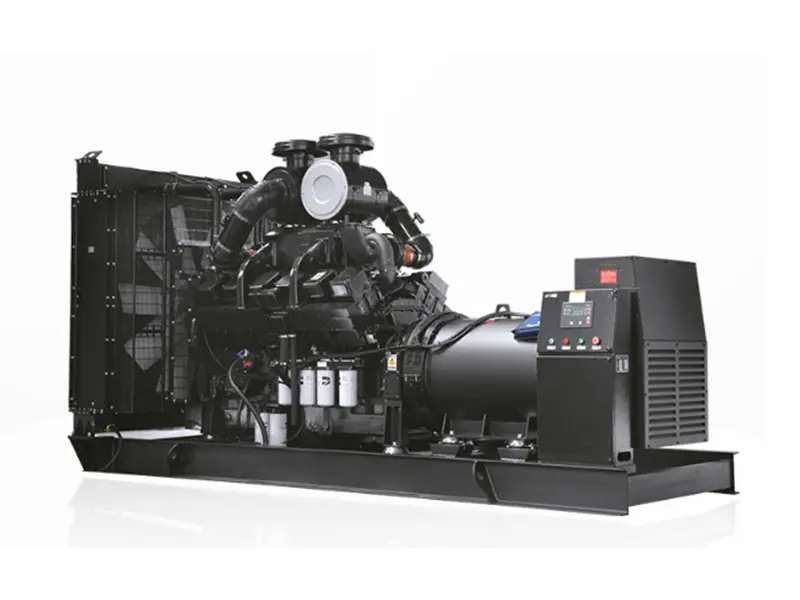

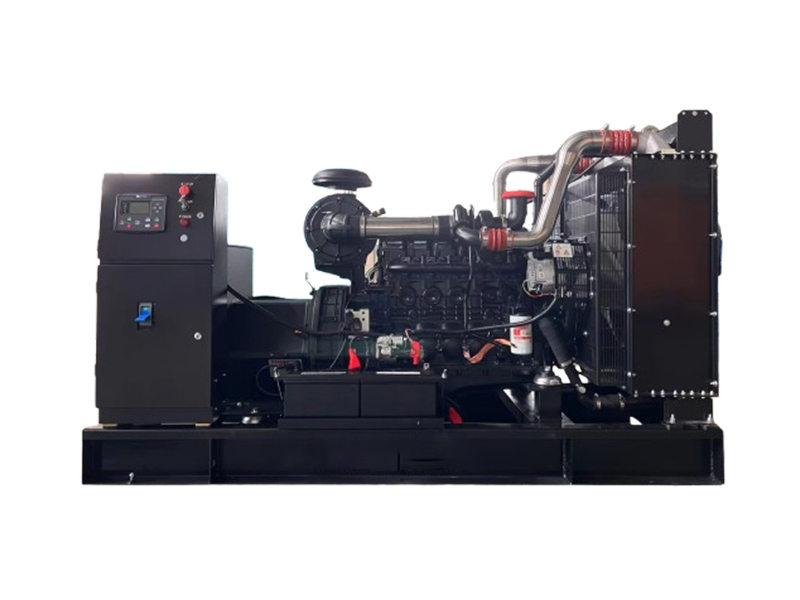

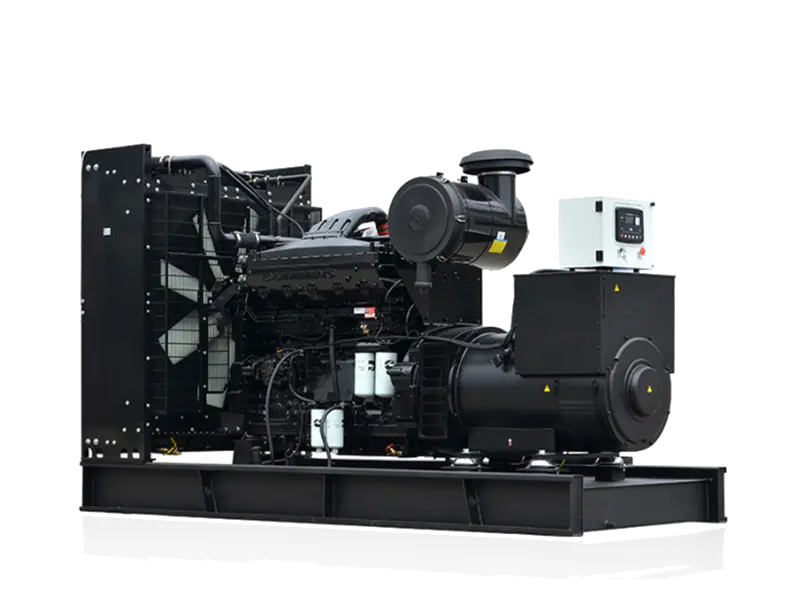

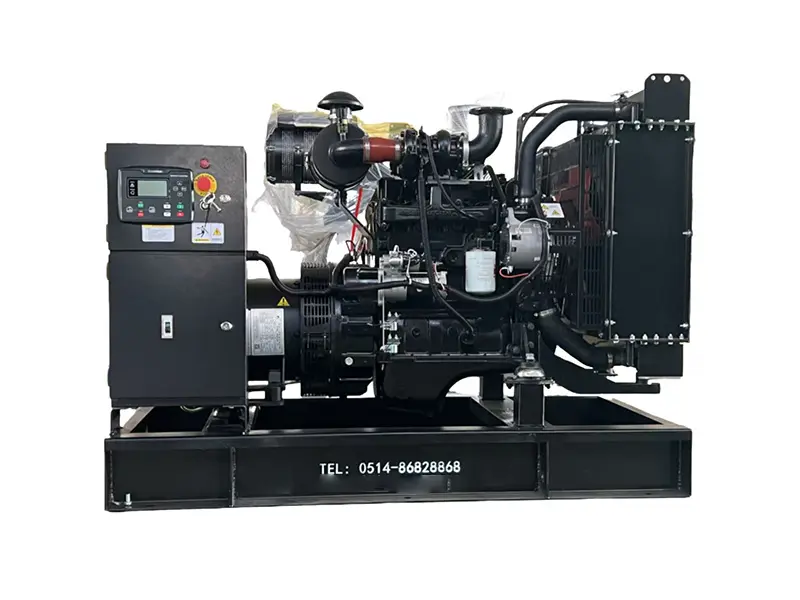

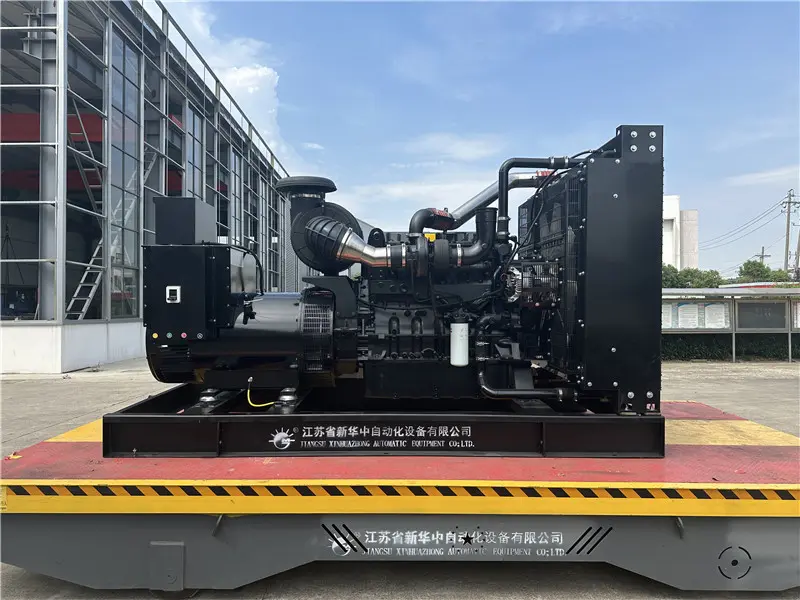

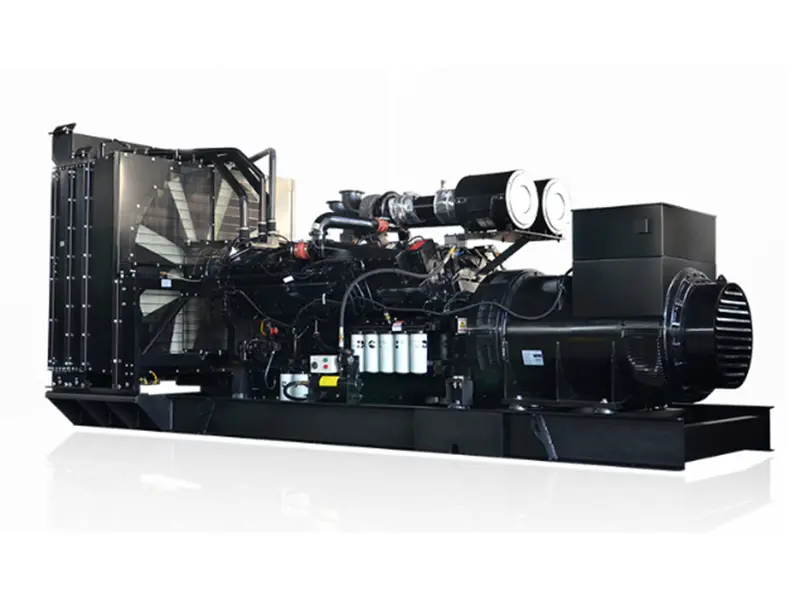

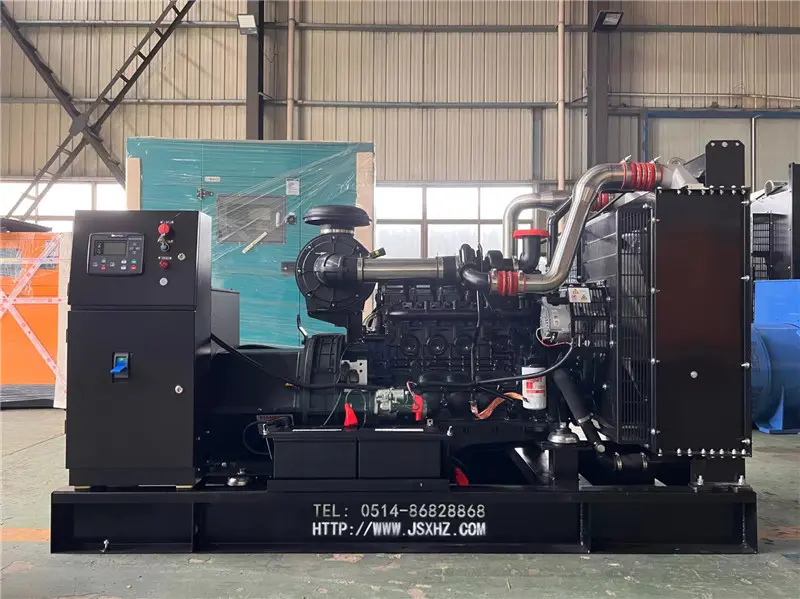

Diesel Generator Sets with Cummins Engines

● Adopting Cummins engines, offering cutting-edge design, dependable performance and long service life;
● Alloy steel crankshaft and connecting rod, ensuring high durability;
● Continuous operation with high combustion efficiency and low fuel consumption;
● PT pump fuel injection technology, guaranteeing safe and reliable operation;
● Anti-vibration units are optimally designed, while the pressure boosting system and low-speed cooling fan enable the noise level to be significantly lowered;
● Generator excitation system allows the generator set to recover the voltage in the event of a sudden load, guaranteeing the reliability of operation;

50HZ

60HZ

Features

Alternator

Control System

Cummins 50Hz

Genset Model	Standby Power		Prime Power		Engine Model	Displacement (L)	Fuel Consumption g/kw.h	Open Type	Silent Type
	kVA	kW	kVA	kW				LWH (mm)	LWH (mm)
XHZC-25GF	30	24	27	22	4B3.9-G2	3.9	208	18008501300	220010001500
XHZC-40GF	44	35	40	32	4BT3.9-G2	3.9	208	18009001400	220010001500
XHZC-63GF	69	55	62.5	50	4BTA3.9-G2	3.9	208	18009001400	240010001550
XHZC-70GF	70	56	65	52	4BTA3.9-G2	3.9	208	18009001400	240010001550
XHZC-80GF	90	72	80	64	4BTA3.9-G11	3.9	210	1900x800x1400	240010001550
XHZC-100GF	110	88	100	80	4BTA3.9-G13	3.9	210	1900x800x1400	240010001550
XHZC-100GF	110	88	100	80	6BT5.9-G2	5.9	209	2200x900x1450	280011001700
XHZC-113GF	125	100	113	90	6BT5.9-G2	5.9	210	2200x900x1450	280011001700
XHZC-125GF	138	110	125	100	6BTA5.9-G2	5.9	209	2300x900x1450	300011001700
XHZC-138GF	150	120	138	110	6BTAA5.9-G2	5.9	206	235010001550	300011001700
XHZC-160GF	175	140	160	128	6BTAA5.9-G12	5.9	205	250010001550	300011001650
XHZC-180GF	200	160	180	145	6CTA8.3-G2	8.3	209	25009001560	330013001800
XHZC-200GF	215	172	200	160	6CTAA8.3-G2	8.3	207	26009001560	330013001800
XHZC-250GF	264	211	250	200	6LTAA8.9-G2	8.9	206	260010001600	360016001900
XHZC-250GF	275	220	250	200	6LTAA8.9-G3	8.9	206	260010001600	360016001900
XHZC-270GF	300	240	270	220	6LTAA9.5-G3	9.5	209	270011001700	380017002000
XHZC-275GF	313	250	275	220	NTA855-G1A	14	208	260016001500	400017002000
XHZC-313GF	340	272	313	250	6LTAA9.5-G1	9.5	206	270011001700	380017002000
XHZC-313GF*	340	272	313	250	NTA855-G1B	14	208	300011001700	400017002000
XHZC-350GF	375	300	350	280	NTA855-G2A	14	207	300011001700	400017002000
XHZC-400GF	388	310	350	280	NTA855-G4	14	209	300011001700	400017002000
XHZC-380GF	425	340	388	310	6ZTAA13-G3	14	210	300013001700	400018002000
XHZC-375GF	413	330	375	300	NTAA855-G7	14	209	330012501850	400017002000
XHZC-400GF3	438	350	400	320	QSNT-G3	13	208	290012501900	400017002000
XHZC-438GF	475	380	438	350	6ZTAA13-G4	13	210	300013001800	400018002000
XHZC-500GF	513	410	500	400	QSZ13-G3	13	209	310012501850	400018002000
XHZC-500GF*	550	440	500	400	QSZ13-G10	13	210	330014501900	430020002200
XHZC-450GF	500	400	450	360	KTA19-G3	19	210	340014001900	430020002200
XHZC-500GF	563	450	500	400	KTA19-G3A	19	209	340014002000	430020002200
XHZC-500GF*	563	450	500	400	KTA19-G4	19	210	340014502000	430020002200
XHZC-560GF	625	500	563	450	KTAA19-G5	19	208	360014602100	470021002450
XHZC-700GF	688	550	/	/	KTAA19-G6A	19	211	370015002200	470021002450
XHZC-725GF	800	640	725	580	KT38-GA	38	210	445017002360	605824382896
XHZC-750GF	825	660	750	600	KTA38-G2	38	209	445017002360	605824382896
XHZC-800GF	888	710	800	640	KTA38-G2B	38	208	445017002360	605824382896
XHZC-900GF	1000	800	910	728	KTA38-G2A	38	208	445017002360	605824382896
XHZC-1000GF	1100	880	1000	800	KTA38-G5	38	210	440018002400	605824382896
*XHZC-1100GF	1250	1000	/	/	KTA38-G9	38	209	480018002500	605824382896
XHZC-1250GF	1375	1100	1250	1000	KTA50-G3	50	208	520020002500	605824382896
XHZC-1380GF	1650	1320	1375	1100	KTA50-G8	50	210	590022702500	1219224382896
XHZC-1500GF	1650	1320	1500	1200	KTA50-GS8	50	210	590022702500	1219224382896
XHZC-1680GF	1875	1500	1675	1340	KTA50-G15X	50	209	620023002550	1219224382896
XHZC-2000GF	2090	1650	2000	1600	KTA50-G16B	50	211	620023002550	1219224382896

Cummins 60Hz

Genset Model	Standby Power		Prime Power		Engine Model	Displacement (L)	Fuel Consumption g/kw.h	Open Type	Canopy Type
	kVA	kW	kVA	kW				LWH (mm)	LWH (mm)
XHZC-25GF	28	22	25	20	4B3.9-G11	3.9	207	1900x800x1400	220010001500
XHZC-30GF	35	28	30	25	4B3.9-G2	3.9	208	18008501300	220010001500
XHZC-35GF	38	30	35	28	4B3.9-G12	3.9	207	18009001300	220010001500
XHZC-45GF	50	40	45	36	4BT3.9-G2	3.9	206	18009001400	220010001500
XHZC-64GF	70	56	64	51	4BTA3.9-G2	3.9	205	18009001400	240010001550
XHZC-75GF	88	70	75	60	4BTA3.9-G2	3.9	206	18009001400	240010001550
XHZC-90GF	100	80	90	72	4BTA3.9-G11	3.9	205	1900x800x1400	240010001550
XHZC-100GF	115	92	105	84	6BT5.9-G2	5.9	207	2200x900x1450	280011001700
XHZC-125GF	138	110	125	100	*6BT5.9-G2	5.9	208	2200x900x1450	280011001700
XHZC-130GF	145	116	131	105	6BTA5.9-G2	5.9	206	2300x900x1450	300011001700
XHZC-150GF	165	130	150	120	6BTAA5.9-G2	5.9	206	235010001550	300011001700
XHZC-160GF	175	140	160	128	6BTAA5.9-G12	5.9	207	250010001550	300011001700
XHZC-190GF	209	167	190	152	6CTA8.3-G2	8.3	208	25009001560	330013001800
XHZC-210GF	230	184	210	168	6CTAA8.3-G2	8.3	207	26009001560	330013001800
XHZC-250GF	285	228	260	208	6LTAA8.9-G2	8.9	206	260010001600	360016001900
XHZC-288GF	313	250	288	230	6LTAA8.9-G3	8.9	206	260010001600	360016001900
XHZC-285GF	325	260	285	230	6LTAA9.5-G3	9.5	206	270011001700	380017002000
XHZC-325GF	350	280	325	260	6LTAA9.5-G1	9.5	209	270011001700	380017002000
XHZC-388GF	425	340	388	310	6ZTAA13-G3	14	208	290012001700	400018002000
XHZC-438GF	475	380	438	350	6ZTAA13-G2	14	209	290012001700	400018002000
XHZC-500GF	525	420	500	400	QSZ13-G3	13	208	310012501850	400018002000
XHZC-560GF	625	500	560	450	QSZ13-G11	13	208	310012501850	430020002200
XHZC-280GF	275	220	/	/	NT855-GA	14	208	260016001500	400017002000
XHZC-350GF	350	280	313	250	NTA855-G1	14	207	300011001700	400017002000
XHZC-380GF	375	300	350	280	NTA855-G1B	14	209	300011001700	400017002000
XHZC-450GF	438	350	394	315	NTA855-G3	14	208	300011001700	400017002000
XHZC-400GF3	438	350	400	320	QSNT-G3	13	208	290012501900	400017002000
XHZC-500GF	550	450	500	410	KTA19-G3	19	209	340014001900	470021002450
XHZC-560GF	625	500	563	450	KTA19-G3A	19	208	340014002000	470021002450
XHZC-560GF*	625	500	563	450	KTA19-G4	19	207	340014502000	470021002450
XHZC-625GF	688	550	588	470	KTAA19-G5	19	209	358015552150	470021002450
XHZC-720GF	713	570	625	500	QSK19-G4	18.9	208	380016002200	470021002450
*XHZC-750GF	750	600	/	/	KTAA19-G6A	19	210	370015002200	470021002450
XHZC-688GF	750	600	688	550	QSK19-G5	19	207	380015502200	470021002450
XHZC-775GF	844	680	775	620	KT38-G	38	208	445017002360	605824382896
XHZC-875GF	963	770	875	700	KTA38-G1	38	206	445017002360	605824382896
XHZC-900GF	1000	800	906	725	KTA38-G2	38	209	445017002360	605824382896
XHZC-940GF	1038	830	938	750	KTA38-G2B	38	210	445017002360	605824382896
XHZC-1000GF	1125	900	1000	800	KTA38-G2A	38	209	445017002360	605824382896
XHZC-1100GF	1250	1000	1125	900	KTA38-G4	38	208	440018002400	605824382896
XHZC-1100GF	1375	1100	/	/	KTA38-G9	38	210	480018002400	605824382896
XHZC-1250GF	1438	1150	1200	960	QSK38-G5	38	208	480018002400	605824382896
XHZC-1375GF	1563	1250	1375	1100	KTA50-G3	50	209	520020002500	605824382896
XHZC-1375GF	1550	1240	1375	1100	QSK38-G4	38	211	530020002500	1219224382896
XHZC-1580GF	1875	1500	1575	1260	KTA50-G9	50	212	590023002500	1219224382896

Standard Features

● XHZ POWER provides one-stop service to meet all customers' needs of power generation system and components.

● All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.

● Warranty: after 1000 hours of running, or 1 year from the date of initial startup (whichever comes first).

Other Features

● Optional ATS (Automatic Transfer SwiXHZC-h) automatically swiXHZC-hes between the diesel generator and mains in the case of a power failure.

● Auto Synchronization System) enables multiple diesel generator sets to be synchronized and connected in parallel.

Optional Alternator Brands

01

STAMFORD industrial alternators meet the requirements of the relevant parts of the IEC 60034 and the relevant sections of other international standards such as BS5000-3, ISO 8528-3, VDE 0530, NEMA MG1-32, CSA C22.2-100 and AS 60034. Other standards and certifications can be considered on request.
02

Leroy-Somer alternator has also obtained products specially designed for application in special fields or environmentsCertification from international organizations such as LCIE, DNV, INERIS, EFECTIS, UL, BSRIA, TUV, CCC, GOST, eXHZC-., ensures the quality of our products.All technical performance meets the certification standards and requirements.
03

The Marathon® brand encompasses a variaty of products and solutions, including single phase and three phase AC motors, NEMA and IEC motors, low and medium voltage motors and Generators.
04

The XHZ series generators comply with GB755, BS5000 Part III,VDE0530, NEMA MG1-32, IEC34-1, CSA C22.2-100, and AS1359.

SGC 420 CONTROLLER

The SGC 420 controller has an advanced battery charge management capability and is specially designed for AMF applications with a mechanical and electronically controlled engine

Standard Features

● Support automatic, manual and remote start/stop modes;

● Can supervise engine safety, electrical load, site battery backup voltage and shelter temperature to cut down on fuel consumption.

● The real time clock (RXHZC-) precisely logs up to 100 events and conducts data analysis.

● Auto exercise mode (2 events) allows to start and stop the generator set for for a preconfigured time.

● Built-in electronic speed governor is adopted for variable-speed monitoring.

● Able to monitor voltage, frequency, load current and power factor of the generator set.

● Provided with digital outputs of start relay, fuel relay, alarm horn and more.

● Counters for engine starts, engine trips, engine running hours, generator set kWh, kVAh, kVArh and Mains kWh, kVAh, kVArh.

Optional control system brands

DEEPSEA、COMAP、HGM....
