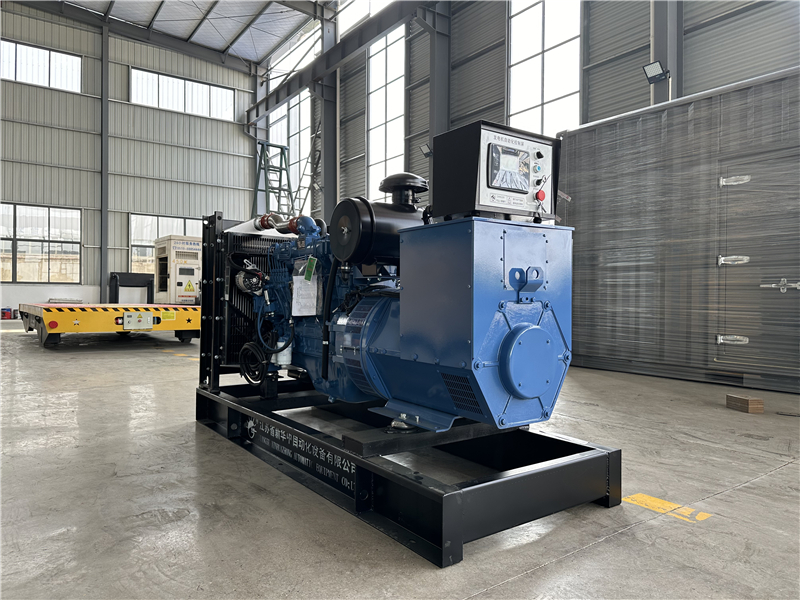

Diesel Generator Sets with YUCHAI Engines-XHZY Series04.jpg

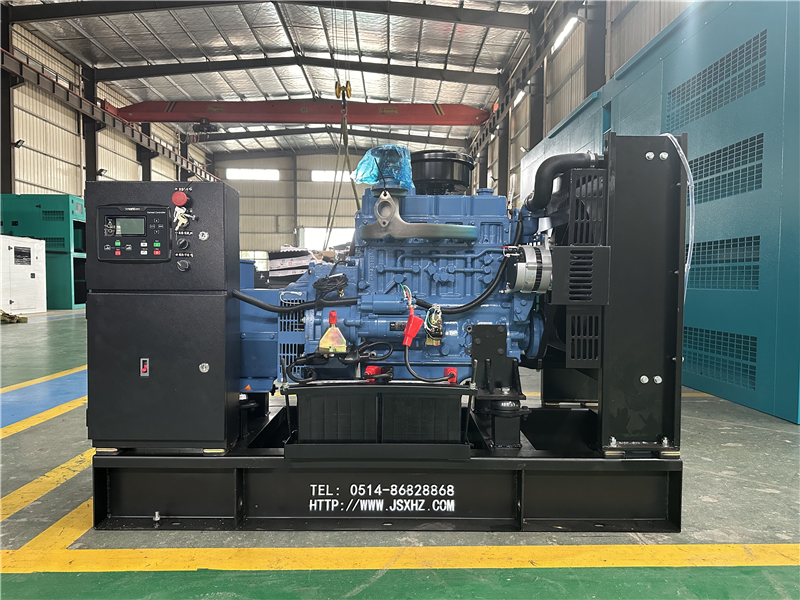

Diesel Generator Sets with YUCHAI Engines-XHZY Series02.jpg

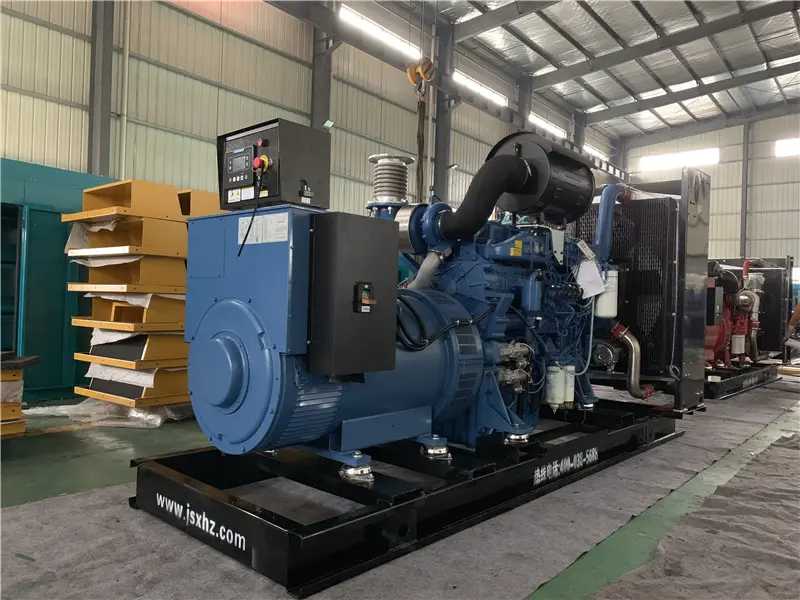

Diesel Generator Sets with YUCHAI Engines-XHZY Series06.jpg

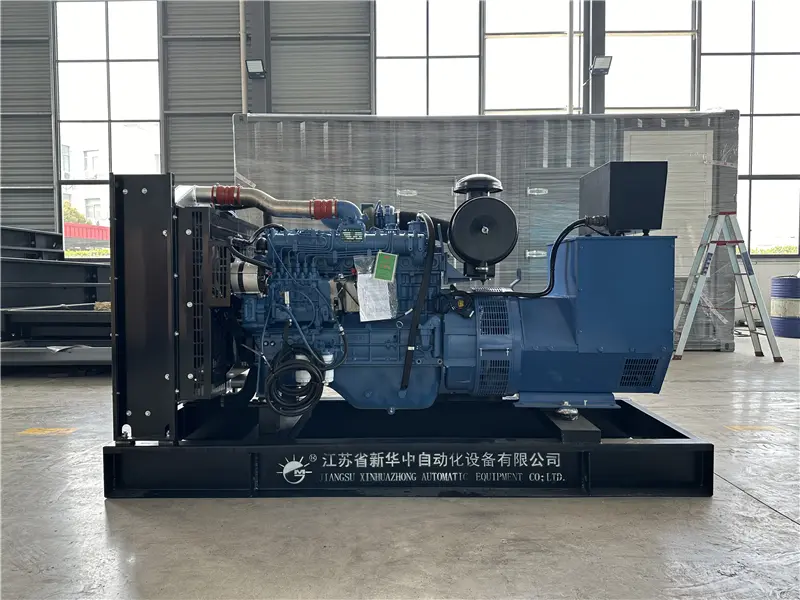

Diesel Generator Sets with YUCHAI Engines-XHZY Series05.jpg

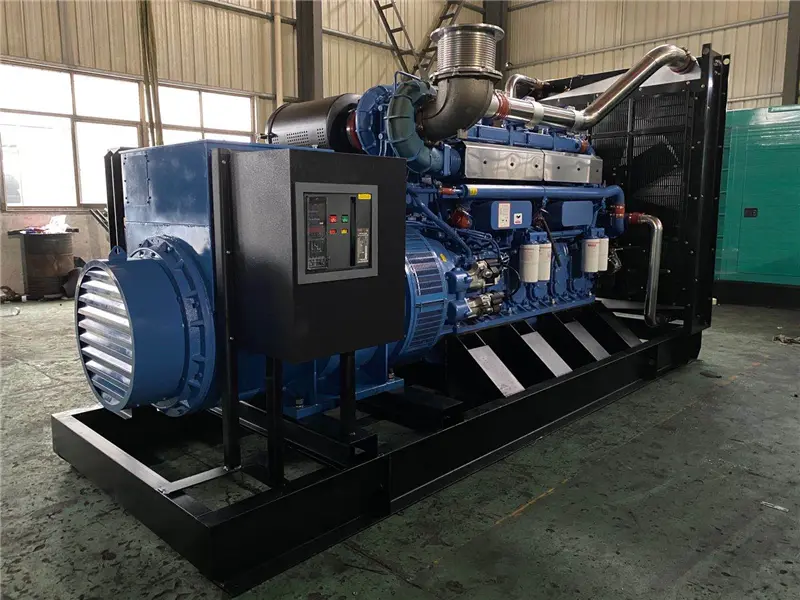

Diesel Generator Sets with YUCHAI Engines-XHZY Series13.jpg

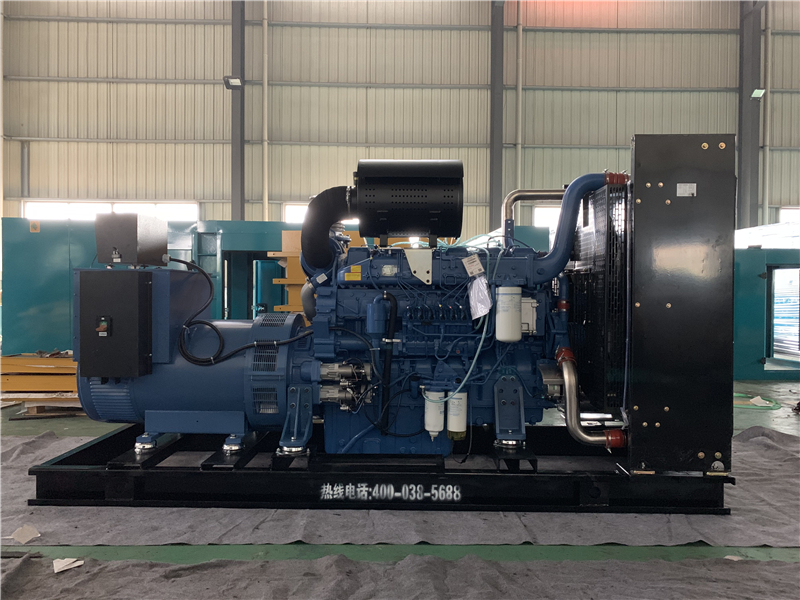

Diesel Generator Sets with YUCHAI Engines-XHZY Series09.jpg

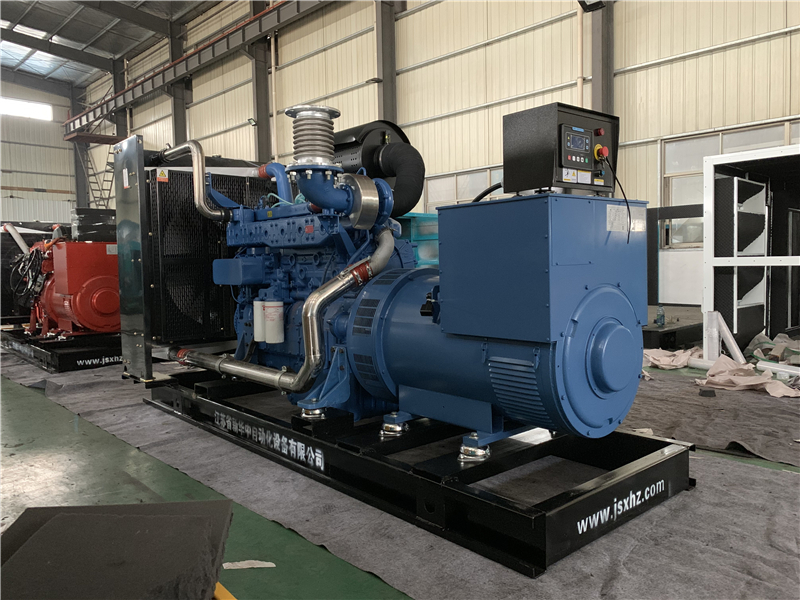

Diesel Generator Sets with YUCHAI Engines-XHZY Series08.jpg

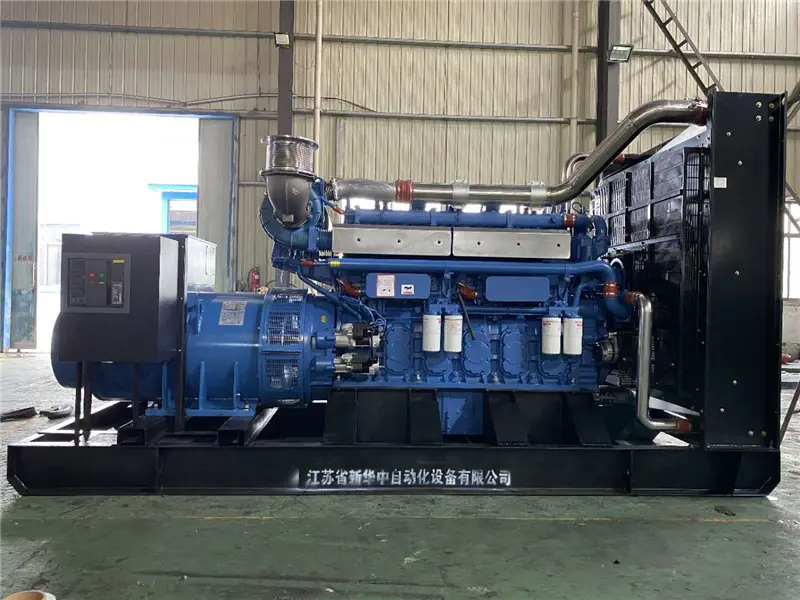

Diesel Generator Sets with YUCHAI Engines-XHZY Series01.jpg

Diesel Generator Sets with YUCHAI Engines

XHZY series diesel generator sets are powered by YUCHAI engines.
Power range 30kVA-4000kVA

● Adopting Yuchai engines, featuring strong transient loading capacity, good maintainability and long service life;
● YUCHAI Engines run smoothly, with low noise and small vibration. They have strong load resistance,Continuous operation with high combustion efficiency and low fuel consumption;
● Precise control of fuel injection volume and abundant intake air, ensuring the full combustion and less emission of the diesel engine under different load conditions;
● The products meet domestic and international emission standards, have compact structure, convenient maintenance, long service life, and high reliability and economy.

50HZ

60HZ

Features

Alternator

Control System

Specifications 50Hz 400-230V

GENSETS	Prime Power		Standby Power		Engine type	CyL	DSPL	Fuel cons.	Dimension LxWxH	Weight
	kVA	kW	kVA	kW			L	g/kw.h	LWH (mm)	kg
XHZY-20GF	16	20	18	23	YC4V35-D20	4L	2.982	≤232	1700x650x1000	770
XHZY-30GF	24	30	27	34	YC4V45Z-D20	4L	2.982	≤232	1700x650x1000	770
XHZY-68GF	30	38	33	41	YC4V55Z-D20	4L	2.982	≤232	1700x700x1000	770
XHZY-40GF	32	40	35	44	YC4D60-D25	4L	4.21	≤232	1800x700x1000	830
XHZY-63GF	50	63	55	69	YC4D90Z-D25	4L	4.21	≤200	1900x750x1100	850
XHZY-70GF	55	69	60	75	YC4A100Z-D20	6L	4.84	≤200	1900x750x1100	900
XHZY-100GF	80	100	90	113	YC4A140L-D25	6L	6.871	≤200	2100x1100x1300	1100
XHZY-125GF	100	125	110	138	YC4A180L-D20	6L	6.871	≤200	2200x1100x1400	1150
XHZY-125GF*	100	125	120	150	YC6B180L-D20	6L	6.871	≤200	2200x1100x1400	1200
XHZY-150GF	120	150	132	165	YC6B205L-D20	6L	6.871	≤230	2300x1100x1500	1250
XHZY-175GF	140	175	154	193	YC6A230L-D20	6L	7.25	≤192	2400x1100x1500	1410
XHZY-188GF	150	188	165	206	YC6A245L-D21	6L	7.25	≤192	2500x1100x1600	1430
XHZY-250GF	200	250	220	275	YC6MK350L-D20	6L	10.34	≤195	2900x1100x1600	1600
XHZY-313GF	250	313	275	344	YC6MK420L-D20	6L	10.34	≤195	3100x1100x1850	1600
XHZY-350GF	280	350	310	388	YC6MK460L-D20	6L	11.75	≤195	3100x1100x1850	1900
XHZY-375GF	300	375	320	400	YC6MK480L-D20	6L	11.75	≤195	3200x1200x1850	1900
XHZY-375GF*	300	375	330	413	YC6MJ500-D21	6L	12.16	≤195	3250x1200x1600	1900
XHZY-400GF	320	400	352	440	YC6MJ540-D30	6L	12.16	≤195	3250x1200x1700	2300
XHZY-450GF	360	450	396	495	YC6MJ600-D30	6L	16.3	≤195	3450x1400x1800	3000
XHZY-500GF	400	500	440	550	YC6T660L-D20	6L	16.3	≤195	3500x1400x1900	3600
XHZY-563GF	450	563	500	625	YC6TD780-D31	6L	19.58	≤195	3500x1400x1900	3800
XHZY-563GF*	450	563	500	625	YC6TD780-D30	6L	19.58	≤195	3500x1400x1900	3800
XHZY-625GF	500	625	550	688	YC6TD840-D31	6L	19.58	≤195	3600x1400x1900	4400
XHZY-625GF*	500	625	550	688	YC6TD840-D30	6L	19.58	≤195	3600x1400x1900	4400
XHZY-688GF	550	688	600	750	YC6TD900-D31	6L	19.58	≤195	3600x1400x2200	4400
XHZY-688GF*	550	688	605	750	YC6TD900-D30	6L	19.58	≤195	3600x1400x2200	4400
XHZY-750GF	600	750	660	825	YC6TD1000-D31	6L	39.58	≤195	4100x1900x2200	6500
XHZY-750GF*	600	750	660	825	YC6TD1000-D30	6L	39.58	≤195	4100x1900x2200	6500
XHZY-800GF*	640	800	704	880	YC6TD1100-D30	6L	39.58	≤195	4200x2000x2200	6800
XHZY-910GF	730	913	800	1000	YC6TH1220-D31	6L	39.58	≤195	4200x2000x2200	6800
XHZY-1000GF	800	1000	900	1125	YC6TH1320-D31	6L	39.58	≤195	4200x2000x2200	7350
XHZY-1125GF	900	1125	1000	1250	YC6C1520-D31	6L	39.58	≤195	4300x2000x2200	8700
XHZY-1250GF	1000	1250	1100	1375	YC6C1660-D31	6L	39.58	≤195	4400x2000x2200	9000
XHZY-1250GF*	1000	1250	1100	1375	YC6C1660-D30	6L	39.58	≤195	4400x2000x2200	9000
XHZY-1000GF*	800	1000	900	1125	YC12VTD1350-D30	12V	79.17	≤195	4400x2000x2200	7300
XHZY-1125GF*	900	1125	1000	1250	YC12VTD1500-D30	12V	79.17	≤195	4500x2000x2250	8100
XHZY-1250GF**	1000	1250	1100	1375	YC12VTD1680－D30	12V	79.17	≤195	4600x2200x2450	9300
XHZY-1375GF	1100	1375	1200	1500	YC12VTD1830－D30	12V	79.17	≤195	4600x2200x2450	9500
XHZY-1500GF	1200	1500	1320	1650	YC12VTD2000－D30	12V	79.17	≤195	4600x2300x2450	10000
XHZY-1688GF	1350	1688	1485	1856	YC16VTD2270-D30	16V	105.56	≤195	4700x2300x2450	11000
XHZY-1875GF	1500	1875	1650	2063	YC16VTD2510-D30	16V	105.56	≤195	4800x2400x2500	12000
XHZY-2000GF	1600	2000	1760	2200	YC16VTD2700-D30	16V	105.56	≤195	5300x2400x2600	14000
XHZY-2250GF	1800	2250	1980	2475	YC16VC3000-D31	16V	105.56	≤203	5500x2500x2600	16000
XHZY-2500GF	2000	2500	2200	2750	YC16VC3300-D31	16V	105.56	≤203	5800x2600x2700	18000
XHZY-2750GF	2200	2750	2400	3000	YC16VC3600-D31	16V	105.56	≤203	6000x2700x2800	20000
XHZY-3000GF	2400	3000	2600	3250	YC16VC4000-D31	16V	105.56	≤203	6100x2700x2800	20000
XHZY-3125GF	2500	3125	2700	3375	YC16VC4200-D30	16V	105.56	≤203	6100x2700x2800	21000
XHZY-3250GF	2600	3250	2800	3500	YC16VC4500-D30	16V	105.56	≤203	6200x2700x3000	22000
XHZY-3500GF	2800	3500	3000	3750	YC16VC4900-D30	16V	105.56	≤203	6500x2700x3100	24000

Specifications 50Hz 400-230V

GENSETS	Prime Power		Standby Power		Engine type	CyL	Fuel cons.	Dimension Open type	Weight
	kVA	kW	kVA	kW			g/kw.h	LWH (mm)	kg
XHZY-20GF	18	23	20	25	YC4V35-D21	4L	≤232	1400x650x1000	400
XHZY-30GF	25	31	28	35	YC4V45Z-D21	4L	≤232	1500x650x1000	450
XHZY-38GF	30	38	33	41	YC4V55Z-D21	4L	≤232	1500x700x1000	470
XHZY-44GF	35	44	40	50	YC4D65-D20	4L	≤232	1500x700x1000	600
XHZY-56GF	45	56	50	63	YC4D80Z-D20	4L	≤200	1700x700x1000	650
XHZY-70GF	55	69	60	75	YC4D100Z-D20	4L	≤200	1800x700x1000	800
XHZY-88GF	70	88	80	100	YC6B130Z-D20	6L	≤200	1900x750x1100	900
XHZY-90GF	75	94	85	106	YC4D140-D33	4L	≤200	1900x750x1100	1100
XHZY-100GF	80	100	90	113	YC4D155-D33	4L	≤230	1900x750x1100	1100
XHZY-100GF*	80	100	90	113	YC6B160Z-D20	6L	≤192	1900x750x1100	1150
XHZY-113GF	90	113	100	125	YC4D180-D33	4L	≤192	2200x1100x140	1100
XHZY-150GF	120	150	132	165	YC4A205-D32	4L	≤195	2300x1100x1500	1300
XHZY-150GF*	120	150	132	165	YC6B210L-D20	6L	≤195	2300x1100x1500	1300
XHZY-188GF	150	188	160	200	YC6A245-D32	6L	≤195	2400x1100x1500	1400
XHZY-188GF*	150	188	160	200	YC6A245L-D20	6L	≤195	2500x1100x1600	1400
XHZY-200GF	160	200	176	220	YC6MK265Z-D20	6L	≤195	2900x1100x1600	1500
XHZY-206GF	165	206	180	225	YC6A285-D32	6L	≤195	2300x1100x1500	1700
XHZY-213GF	170	213	190	238	YC6A305-D32	6L	≤195	2400x1100x1500	1800
XHZY-250GF	200	250	220	275	YC6MK360L-D20	6L	≤195	2500x1100x1600	2100
XHZY-250GF*	200	250	220	275	YC6MK360-D30	6L	≤195	2900x1100x1600	2100
XHZY-313GF	250	313	280	350	YC6MK420-D31	6L	≤195	3000x1200x1600	2400
XHZY-313GF	250	313	280	350	YC6MK420L-D21	6L	≤195	3000x1200x1600	2500
XHZY-375GF	300	375	320	400	YC6MJ515L-D22	6L	≤195	3200x1200x1600	2800
XHZY-375GF*	300	375	320	400	YC6MK500-D32	6L	≤195	3500x1400x1900	2900
XHZY-500GF	400	500	440	550	YC6T660L-D21	6L	≤195	3500x1400x1900	3500
XHZY-575GF	460	575	520	650	YC6TD780-D32	6L	≤195	3600x1400x1900	4300
XHZY-625GF	500	625	550	688	YC6TD840-D32	6L	≤195	3600x1400x2200	4700
XHZY-650GF	520	650	570	713	YC6TD940-D32	6L	≤195	4100x1900x2200	5200
XHZY-750GF	600	750	660	825	YC6TD1020-D32	6L	≤195	4200x2000x2200	5700
XHZY-900GF	720	900	800	1000	YC6TH1070-D33	6L	≤195	4200x2000x2200	7100
XHZY-900GF*	720	900	800	1000	YC6TH1220-D33	6L	≤195	4200x2000x2200	7100
XHZY-1000GF	800	1000	880	1100	YC6TH1350-D33	6L	≤203	4300x2000x2200	7800
XHZY-1250GF	1000	1250	1100	1375	YC12VTD1680-D33	12V	≤203	4400x2000x2200	9500
XHZY-1375GF	1100	1375	1200	1500	YC12VTD1860-D33	12V	≤206	4600x2200x2450	9800
XHZY-1500GF	1200	1500	1320	1650	YC12VTD2070-D33	12V	≤207	4600x2300x2450	11000
XHZY-900GF	720	900	800	1000	YC12VTD1350-D32	12V	≤211	4200x2000x2200	11500
XHZY-1125GF	900	1125	1000	1250	YC12VTD1500-D32	12V	≤215	4300x2000x2200	9500
XHZY-1250GF	1000	1250	1100	1375	YC12VTD1680-D32	12V	≤212	4400x2000x2200	10500
XHZY-1375GF	1100	1375	1200	1500	YC12VTD1860-D32	12V	≤216	4600x2200x2450	11000
XHZY-1500GF	1200	1500	1320	1650	YC12VTD2070-D32	12V	≤219	4600x2300x2450	12000
XHZY-1650GF	1320	1650	1450	1813	YC12VC2170-D33	12V	≤213	4700x2300x2450	12800
XHZY-1750GF	1400	1750	1520	1900	YC16VTD2270-D32	16V	≤203	4800x2400x2500	14000
XHZY-175GF	1500	1875	1650	2063	YC16VTD2510-D32	16V	≤207	5300x2400x2600	16000
XHZY-2063GF	1650	2063	1800	2250	YC16VTD2700-D32	16V	≤209	5500x2500x2600	17000
XHZY-2500GF	2000	2500	2200	2750	YC20VTD3300-D30	16V	≤208	5800x2600x2700	20000

Diesel Generator Sets with YUCHAI Engines-XHZY Series01

Standard Features

● XHZ POWER provides one-stop service to meet all customers' needs of power generation system and components.

● All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.

● Warranty: after 1000 hours of running, or 1 year from the date of initial startup (whichever comes first).

Other Features

● Optional ATS (Automatic Transfer SwiXHZC-h) automatically swiXHZC-hes between the diesel generator and mains in the case of a power failure.

● Auto Synchronization System enables multiple diesel generator sets to be synchronized and connected in parallel.

Diesel Generator Sets with YUCHAI Engines-XHZY Series09

Optional Alternator Brands

01

STAMFORD industrial alternators meet the requirements of the relevant parts of the IEC 60034 and the relevant sections of other international standards such as BS5000-3, ISO 8528-3, VDE 0530, NEMA MG1-32, CSA C22.2-100 and AS 60034. Other standards and certifications can be considered on request.
02

Leroy-Somer alternator has also obtained products specially designed for application in special fields or environmentsCertification from international organizations such as LCIE, DNV, INERIS, EFECTIS, UL, BSRIA, TUV, CCC, GOST, eXHZC-., ensures the quality of our products.All technical performance meets the certification standards and requirements.
03

The Marathon® brand encompasses a variaty of products and solutions, including single phase and three phase AC motors, NEMA and IEC motors, low and medium voltage motors and Generators.
04

The XHZ series generators comply with GB755, BS5000 Part III,VDE0530, NEMA MG1-32, IEC34-1, CSA C22.2-100, and AS1359.

SGC 420 CONTROLLER

The SGC 420 controller has an advanced battery charge management capability and is specially designed for AMF applications with a mechanical and electronically controlled engine

Standard Features

● Support automatic, manual and remote start/stop modes;

● Can supervise engine safety, electrical load, site battery backup voltage and shelter temperature to cut down on fuel consumption.

● The real time clock (RXHZC-) precisely logs up to 100 events and conducts data analysis.

● Auto exercise mode (2 events) allows to start and stop the generator set for for a preconfigured time.

● Built-in electronic speed governor is adopted for variable-speed monitoring.

● Able to monitor voltage, frequency, load current and power factor of the generator set.

● Provided with digital outputs of start relay, fuel relay, alarm horn and more.

● Counters for engine starts, engine trips, engine running hours, generator set kWh, kVAh, kVArh and Mains kWh, kVAh, kVArh.

Optional control system brands

DEEPSEA、COMAP、HGM....
