SDEC Diesel Series

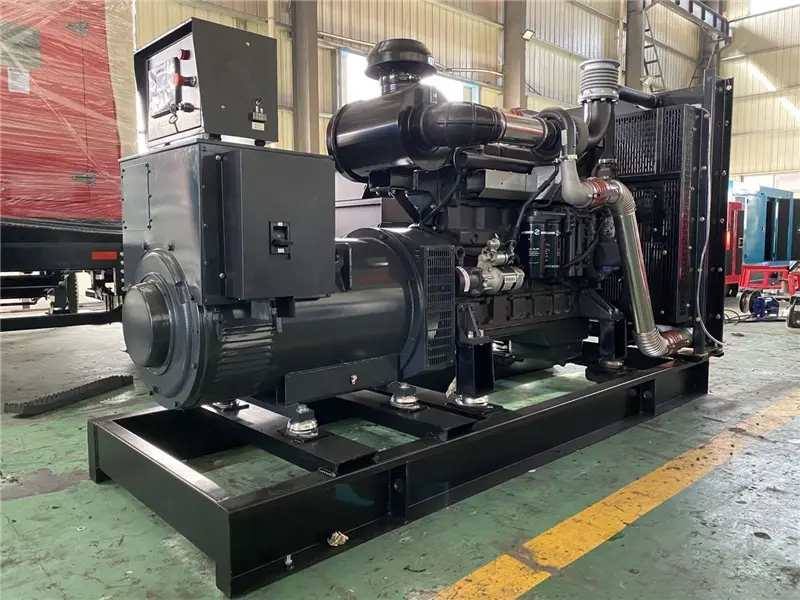

Diesel Generator Sets with SDEC(SHANGCHAI) Engines01.jpg

Diesel Generator Sets with SDEC(SHANGCHAI) Engines05.jpg

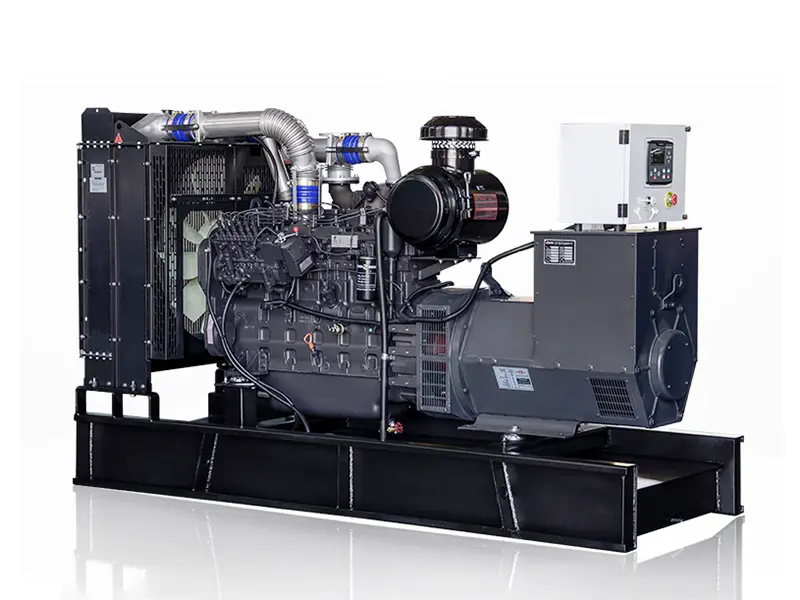

Diesel Generator Sets with SDEC(SHANGCHAI) Engines

XHZS series diesel generator sets are powered by SDEC engines.
Power range 30kVA-2500kVA

● Adopting Shanghai Diesel Engine (SDEC) diesel engines;
● SDEC has launched R, H, D, E, G and W series engines that are jointly engineered by SDEC, Austria AVL and UK RICARDO;
● The generator engine features modular design and standard accessories, and adopts high-strength cylinder body, four-valve structure, and precise electronic speed governor;
● The engine delivers strong power and adaptability to the environment, can achieve fast startup under low temperature.

50HZ

60HZ

Features

Alternator

Control System

50Hz

Genset Model	Standby Power		Prime Power		Engine Model	Displacement (L)	Fuel Consumption (L/h)	Dimension
	kVA	kW	kVA	kW				Open type LWH (mm)
T3 emission
XHZS-25GF	28	22	25	20	4H4.3-G21	4.3	8.2	18008201250
XHZS-40GF	44	35	40	32	4H4.3-G22	4.3	11.5	18008201250
XHZS-50GF	55	44	50	40	4HT4.3-G21	4.3	12.8	18508201300
XHZS-80GF	88	70	80	64	4HT4.3-G23	4.3	19.5	18008201300
XHZS-105GF	116	92	105	84	4HTAA4.3-G21	4.3	23	21708801400
XHZS-125GF	135	108	125	100	4HTAA4.3-G22	4.3	28.3	21708801600
XHZS-138GF	151	121	138	110	6HTAA6.5-G21	6.5	30.5	21708801400
XHZS-150GF	161	129	150	120	6HTAA6.5-G22	6.5	33.1	21708801400
XHZS-188GF	202	162	188	150	6HTAA6.5-G23	6.5	39.7	23509501600
XHZS-200GF	220	176	200	160	6DTAA8.9-G21	8.82	44.1	25509801600
XHZS-250GF	275	220	250	200	6DTAA8.9-G22	8.82	52.7	25509801650
XHZS-250GF*	275	220	250	200	6DTAA8.9-G23	8.82	55.1	25509801650
XHZS-350GF	385	308	350	280	6ETAA11.8-G21	11.8	72.9	315011001850
XHZS-400GF	438	350	400	320	6ETAA12.8-G32	12.8	100.3	315011001850
XHZS-438GF	500	400	438	350	6ETAA12.8-G31	12.8	99.1	315011001850
XHZS-350GF*	385	308	350	280	6ETAA11.8-G33	11.8	71.6	315011001850
XHZS-375GF	413	330	375	300	6ETAA11.8-G31	11.8	79.3	315011001850
XHZS-500GF	563	450	500	400	6ETAA12.8-G310	12.8	102.1	360016902120
XHZS-500GF*	625	500	500	450	6KTAA25-G35	25.8	124	355014002000
XHZS-625GF	688	550	625	500	6KTAA25-G34	25.8	140	360016902100
XHZS-688GF	750	600	688	550	6KTAA25-G33	25.8	152	390018002200
XHZS-750GF	825	660	750	600	6KTAA25-G32	25.8	163	390018002200
XHZS-800GF	875	700	800	640	6KTAA25-G31	25.8	178	420018002200
XHZS-900GF	1000	800	900	720	6WTAA35-G32	35.1	192	430018002300
XHZS-1000GF	1100	880	1000	800	6WTAA35-G31	35.1	265	430018002300
XHZS-1125GF	1250	1000	1125	900	6WTAA35-G310	35.1	240	440018002400
XHZS-1250GF	1375	1100	1250	1000	6WTAA35-G311	35.1	265	450019002400
XHZS-1375GF	1563	1250	1375	1100	12KTA58-G36	57.2	305	450019002400
XHZS-1500GF	1688	1350	1500	1200	12KTA58-G35	57.2	339	460020002400
XHZS-1688GF	1875	1500	1688	1350	12KTA58-G34	57.2	372	470010002400
XHZS-1750GF*	1938	1550	1750	1400	12KTA58-G33	57.2	410	480020002400
XHZS-1875GF	2000	1600	1875	1500	12KTA58-G32	57.2	441	480020002400
XHZS-2125GF	2250	1800	2125	1700	12KTA58-G31	57.2	437	500020002400
T2 emission
XHZS-63GF	69	55	63	50	SC4H95D2	4.3	14.8	20008501400
XHZS-80GF	88	70	80	64	SC4H115D2	4.3	20.2	20008001360
XHZS-113GF	124	99	113	90	SC4H160D2	4.3	25	20009201450
XHZS-125GF	135	108	125	100	SC4H180D2	4.3	28.6	20009201435
XHZS-169GF	186	149	169	135	SC7H230D2	6.44	36.5	25809501600
XHZS-188GF*	202	162	188	150	SC7H250D2	6.44	39.7	25009901600
XHZS-206GF	227	182	206	165	SC8D280D2	8.27	44.9	260010001750
XHZS-225GF	248	198	225	180	SC9D310D2	8.82	50.4	260010001700
XHZS-250GF	275	220	250	200	SC9D340D2	8.82	53.6	26009501600
XHZS-350GF	385	308	350	280	SC12E460D2	11.8	71.6	320011001750
XHZS-375GF	413	330	375	300	SC15G500D2	14.16	81.2	320012501850
XHZS-450GF	495	396	450	360	SC25G610D2	25.8	98	355014002000
XHZS-500GF	550	440	500	400	SC25G690D2	25.8	111	360017002150
XHZS-563GF	615	492	563	450	SC27G755D2	26.6	122.2	355014002000
XHZS-625GF	680	544	625	500	SC27G830D2	26.6	141	360017002100
XHZS-750GF	825	660	750	600	SC33W990D2	32.8	142.2	440018002300
XHZS-900GF	990	792	900	720	SC33W1150D2	32.8	186.4	440018002300

60Hz 220V-480V

Genset Model	Standby Power		Prime Power		Engine Model	Displacement (L)	Fuel Consumption (L/h)
	kVA	kW	kVA	kW				LWH (mm)
XHZS-30GF	34	28	31	25	4H4.3-G21	4.3	9.5	18008201247
XHZS-50GF	55	44	50	40	4H4.3-G22	4.3	13.8	18008201247
XHZS-85GF	93	74	85	68	4HT4.3-G23	4.3	21.6	21708801278
XHZS-110GF	124	99	113	90	4HTAA4.3-G21	4.3	25.6	21708801359
XHZS-125GF	138	110	125	100	4HTAA4.3-G22	4.3	28.8	21708801392
XHZS-150GF	165	132	150	120	6HTAA6.5-G21	6.5	33.1	21708801397
XHZS-160GF	175	140	160	128	6HTAA6.5-G22	6.5	36.3	21708801397
XHZS-206GF	227	182	206	165	6HTAA6.5-G23	6.5	43.4	23509501570
XHZS-228GF	250	200	228	182	6DTAA8.9-G21	8.82	50.9	25509801582
XHZS-263GF	289	231	263	210	6DTAA8.9-G22	8.82	58.9	25509801650
XHZS-275GF	300	240	275	220	6DTAA8.9-G23	8.82	63	25509801650
XHZS-350GF	385	308	350	280	6ETAA11.8-G21	11.8	75.8	315011001825
XHZS-368GF	405	323	368	294	6ETAA11.8-G31	11.8	79.5	315011001825

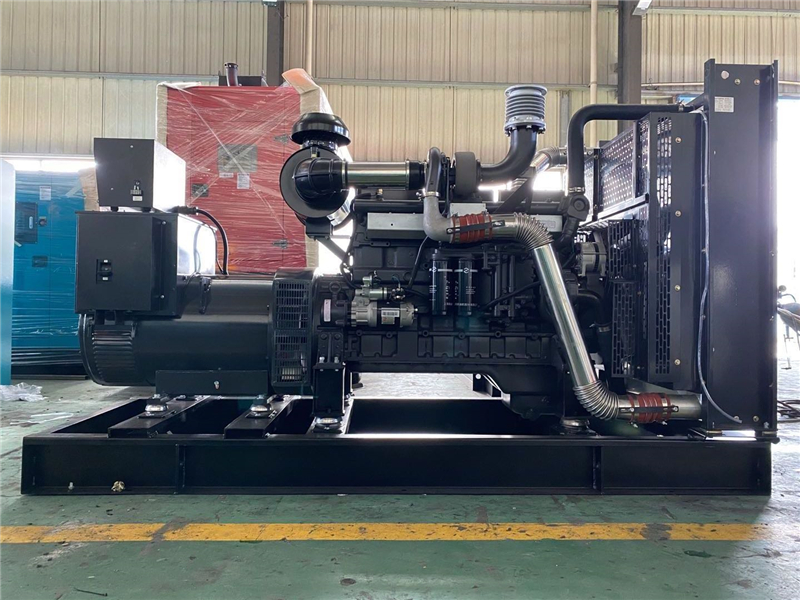

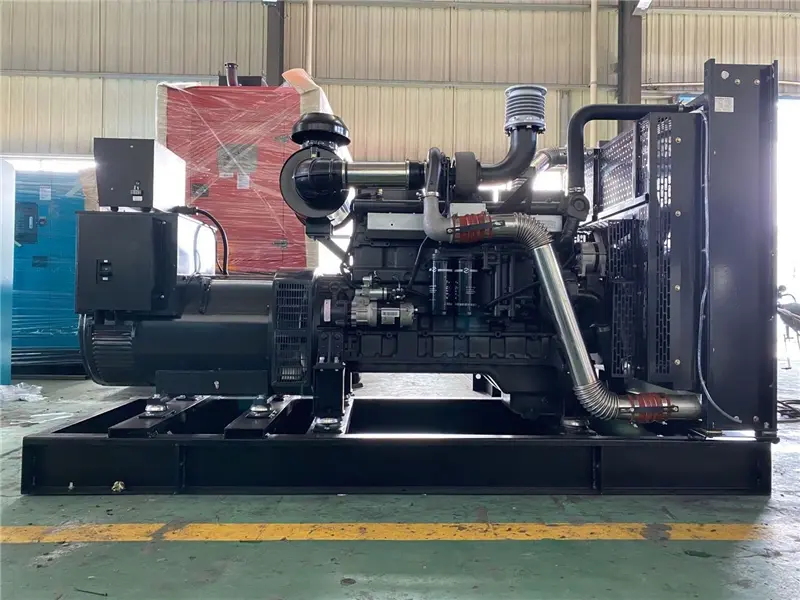

Diesel Generator Sets with SDEC(SHANGCHAI) Engines05

Standard Features

● XHZ POWER provides one-stop service to meet all customers' needs of power generation system and components.

● All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.

● Warranty: after 3000 hours of running, or 1 year from the date of initial startup (whichever comes first).

Other Features

● Optional ATS (Automatic Transfer SwiXHZC-h) automatically swiXHZC-hes between the diesel generator and mains in the case of a power failure.

● Auto Synchronization System) enables multiple diesel generator sets to be synchronized and connected in parallel.

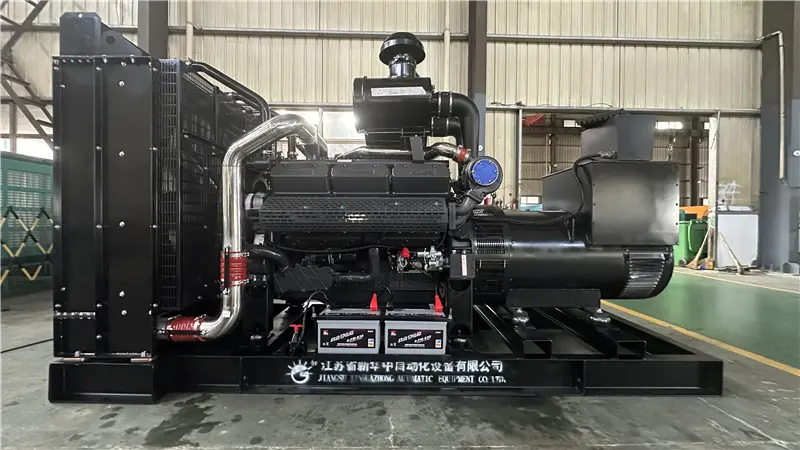

Diesel Generator Sets with SDEC(SHANGCHAI) Engines03

Optional Alternator Brands

01

STAMFORD industrial alternators meet the requirements of the relevant parts of the IEC 60034 and the relevant sections of other international standards such as BS5000-3, ISO 8528-3, VDE 0530, NEMA MG1-32, CSA C22.2-100 and AS 60034. Other standards and certifications can be considered on request.
02

Leroy-Somer alternator has also obtained products specially designed for application in special fields or environmentsCertification from international organizations such as LCIE, DNV, INERIS, EFECTIS, UL, BSRIA, TUV, CCC, GOST, eXHZC-., ensures the quality of our products.All technical performance meets the certification standards and requirements.
03

The Marathon® brand encompasses a variaty of products and solutions, including single phase and three phase AC motors, NEMA and IEC motors, low and medium voltage motors and Generators.
04

The XHZ series generators comply with GB755, BS5000 Part III,VDE0530, NEMA MG1-32, IEC34-1, CSA C22.2-100, and AS1359.

SGC 420 CONTROLLER

The SGC 420 controller has an advanced battery charge management capability and is specially designed for AMF applications with a mechanical and electronically controlled engine
