Perkins Series

Diesel Generator Sets with Perkins Engines

XHZP series diesel generator sets are powered by Perkins engines.
Power range 10kVA-2000kVA

Adopting Perkins engines, featuring strong transient loading capacity, good maintainability and long service life;
Perkins engine with complete product series and wide power coverage has remarkable stability, reliability, durability and service life, can provide you with low operating costs and fast “return” cycle, with wide applications in communications, Industry, outdoor engineering, mining, risk resistance, military and other fields. The 400, 1100, 1300, 2000 and 4000 series diesel engines are produced by Perkins and its production plants in accordance with its global unified quality standards. Perkins’ worldwide service network provides customers with dependable service guarantee.

50HZ

60HZ

Features

Alternator

Control System

50Hz

Model	Prime Power		Standby Power(KVA/KW)		Engine Model	Dimension(MM)	Weight(KG)
	KVA	KW	KVA	KW		Open type LWH (mm)
XHZP-10GF	9	7	10	8	403A-11 G1	1350×500×1090	335
XHZP-10GF*	9	7	10	8	403D-11G	1350×500×1090	335
XHZP-15GF	13	10	14	11	403A-15G1	1430×500×1150	400
XHZP-15GF*	13	10	14	11	403D-15G	1435×500×1150	415
XHZP-20GF	15	12	16	13	403A-15G2	1435×500×1150	415
XHZP-25GF	20	16	22	18	404A-22G1	1610×560×1195	525
XHZP-25GF*	20	16	22	18	404D-22G	1610×560×1195	525
XHZP-30GF	27	22	30	24	404D-22TG	1680×560×1195	550
XHZP-35GF	30	24	32	26	1103A-33G	1840×700×1270	860
XHZP-50GF	45	36	50	40	1103A-33TG1	1960×700×1350	870
XHZP-70GF	60	48	66	53	1103A-33TG2	2050×700×1350	980
XHZP-80GF	65	52	72	57	1104A-44TG1	2200×700×1350	1050
XHZP-90GF	80	64	88	70	1104A-44TG2	2200×700×1350	1080
XHZP-90GF*	80	64	88	70	1104C-44TAG1	2280×700×1350	1150
XHZP-110GF	100	80	110	88	1104C-44TAG2	2280×700×1350	1250
XHZP-150GF	135	108	150	120	1106A-70TG1	2565×850×1425	1522
XHZP-170GF	150	120	165	132	1106A-70TAG2	2750×850×1350	1580
XHZP-200GF	180	144	200	160	1106A-70TAG3	2850×850×1350	1590
XHZP-220GF	200	160	220	176	1106A-70TAG4	2850×1045×1825	1600
XHZP-260GF	231	185	254	203	1506A-E88TAG2	2980×1055×1695	2335
XHZP-300GF	257	206	283	226	1506A-E88TAG3	2980×1055×1695	2350
XHZP-350GF	307	246	338	270	1506A-E88TAG5	3080×1090×1700	2500
XHZP-400GF	350	280	400	320	2206C-E13TAG2	3460×1150×2030	2980
XHZP-450GF	400	320	450	360	2206C-E13TAG3	3460×1150×2030	3135
XHZP-500GF	455	364	500	400	2506C-E15TAG1	3780×1270×2020	3760
XHZP-5500GF	500	400	550	440	2506C-E 15TAG2	3780×1270×2020	3880
XHZP-650GF	591	473	650	520	2806C-E 18TAG1A	3780×1536×2180	4555
XHZP-700GF	650	520	700	560	2806A-E18TAG2	3780×1536×2180	4600
XHZP-900GF	746	597	820	656	4006-23TAG2A	4250×1690×2150	6460
XHZP-900GF	800	640	880	704	4006-23TAG3A	4250×1690×2150	6500
XHZP-1000GF	910	728	1000	800	4008TAG1A	4735×2261×2256	7400
XHZP-1200GF	1022	818	1125	900	4008TAG2A	4735×2261×2256	7450
XHZP-1200GF*	1022	818	1125	900	4008TAG2	4735×2261×2256	7450
XHZP-1250GF	1125	900	1250	1000	4008-30TAG3	4735×2261×2256	7450
XHZP-1400GF	1250	1000	1375	1100	4012-46TWG2A	4800×2100×2297	9030
XHZP-1400GF*	1250	1000	1375	1100	4012-46TWG2	4800×2100×2297	9050
XHZP-1500GF	1375	1100	1500	1200	4012-46TWG3A	4800×2100×2297	9100
XHZP-1700GF	1500	1200	1650	1320	4012-46TAG2A	4900×2100×2297	9730
XHZP-1900GF	1688	1350	1850	1480	4012-46TAG3A	4900×2100×2297	9730
XHZP-2000GF	1850	1480	2000	1600	4016TAG1A	5035×2597×2150	10300
XHZP-2200GF	2000	1600	2200	1760	4016TAG2A	5035×2597×2150	10300
XHZP-2200GF	2000	1600	2200	1760	4016-61TRG2	5250×2600×2150	10270
XHZP-2500GF	2250	1800	2500	2000	4016-61TRG3	5250×2600×2150	11000

60Hz

Model	Prime Power		Standby Power		Engine Model	Dimension(MM)	Weight(KG)
	KVA	KW	KVA	KW
XHZP-15GF	11	9	13	10	403D-11G	1350×500×1090	335
XHZP-20GF	15	12	16	13	403D-15G	1435×500×1150	415
XHZP-20GF*	17	14	19	15	403A-15G2	1435×500×1150	415
XHZP-30GF	24	19	26	21	404D-22G	1610×560×1195	525
XHZP-35GF	33	26	35	29	404D-22TG	1610×560×1195	525
XHZP-40GF	35	28	38	30	1103A-33G	1840×700×1270	860
XHZP-60GF	54	43	59	47	1103A-33TG1	1960×700×1350	870
XHZP-80GF	68	55	75	60	1103A-33TG2	2050×700×1350	980
XHZP-90GF	76	61	84	67	1104A-44TG1	2200×700×1350	1050
XHZP-100GF	90	73	100	80	1104A-44TG2	2200×700×1350	1080
XHZP-100GF*	90	72	100	80	1104C-44TAG1	2280×700×1350	1150
XHZP-130GF	115	92	125	100	1104C-44TAG2	2280×700×1350	1250
XHZP-170GF	152	122	169	135	1106A-70TG1	2565×850×1425	1522
XHZP-200GF	169	135	188	150	1106A-70TAG2	2750×850×1350	1580
XHZP-220GF	197	158	219	175	1106A-70TAG3	2850×850×1350	1590
XHZP-280GF	248	198	273	218	1506A-E88TAG2	2980×1055×1695	2335
XHZP-320GF	290	232	320	256	1506A-E88TAG3	2980×1055×1695	2350
XHZP-400GF	352	282	390	312	1506A-E88TAG5	3080×1090×1700	2500
XHZP-440GF	400	320	438	350	2206C-E13TAG2	3460×1150×2030	2980
XHZP-440GF*	400	320	438	350	2206C-E13TAG3	3460×1150×2030	3135
XHZP-580GF	500	400	563	450	2506C-E15TAG1	3780×1270×2020	3760
XHZP-580GF*	500	400	563	450	2506C-E 15TAG2	3780×1270×2020	3880
XHZP-700GF	625	500	687	550	2806C-E 18TAG 1A	3780×1536×2180	4555
XHZP-700GF*	625	500	687	550	2806A-E18TAG2	3780×1536×2180	4555
XHZP-830GF	750	600	825	660	4006-23TAG2A	4250×1690×2150	6460
XHZP-950GF	849	679	940	750	4006-23TAG3A	4250×1690×2150	6500
XHZP-1100GF	1000	800	1100	880	4008TAG2	4735×2261×2256	7450
XHZP-1375GF	1250	1000	1375	1100	4012-46TWG2A	4800×2100×2297	9030
XHZP-1500GF	1375	1100	1500	1200	4012-46TWG3A	4800×2100×2297	9100
XHZP-1650GF	1500	1200	1650	1320	4012-46TAG2A	4900×2100×2297	9730
XHZP-1850GF	1690	1350	1850	1480	4012-46TAG3A	4900×2100×2297	9730

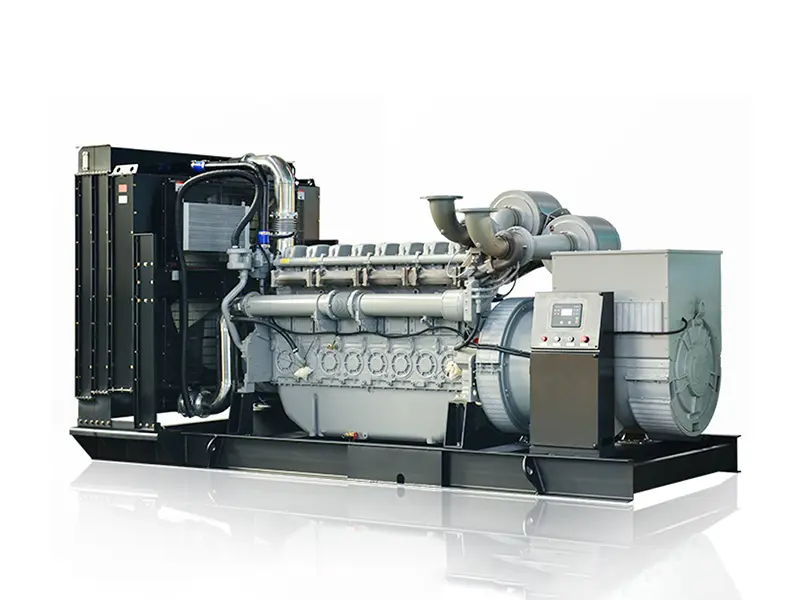

Diesel-Generator-Sets-with-Perkins-Engines2

Standard Features

● XHZ POWER provides one-stop service to meet all customers' needs of power generation system and components.

● All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.

● Warranty: after 1000 hours of running, or 1 year from the date of initial startup (whichever comes first).

Other Features

● Optional ATS (Automatic Transfer SwiXHZC-h) automatically swiXHZC-hes between the diesel generator and mains in the case of a power failure.

● Auto Synchronization System) enables multiple diesel generator sets to be synchronized and connected in parallel.

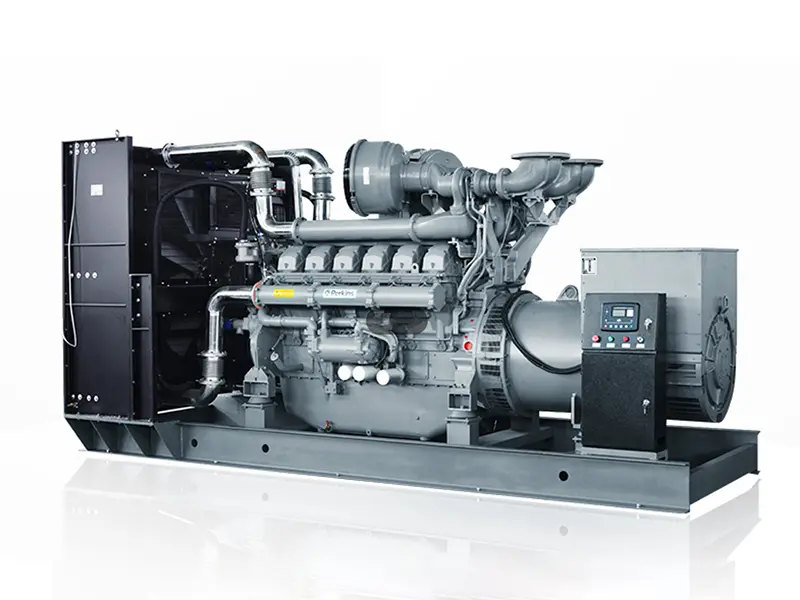

Diesel-Generator-Sets-with-Perkins-Engines1

Optional Alternator Brands

01

STAMFORD industrial alternators meet the requirements of the relevant parts of the IEC 60034 and the relevant sections of other international standards such as BS5000-3, ISO 8528-3, VDE 0530, NEMA MG1-32, CSA C22.2-100 and AS 60034. Other standards and certifications can be considered on request.
02

Leroy-Somer alternator has also obtained products specially designed for application in special fields or environmentsCertification from international organizations such as LCIE, DNV, INERIS, EFECTIS, UL, BSRIA, TUV, CCC, GOST, eXHZC-., ensures the quality of our products.All technical performance meets the certification standards and requirements.
03

The Marathon® brand encompasses a variaty of products and solutions, including single phase and three phase AC motors, NEMA and IEC motors, low and medium voltage motors and Generators.
04

The XHZ series generators comply with GB755, BS5000 Part III,VDE0530, NEMA MG1-32, IEC34-1, CSA C22.2-100, and AS1359.

SGC 420 CONTROLLER

The SGC 420 controller has an advanced battery charge management capability and is specially designed for AMF applications with a mechanical and electronically controlled engine
