Cummins Series

32kw/40kva Cummins series Diesel Generator

32kw/40kva diesel generator is suitable for occasions where small and medium-sized power supply is required and the power grid is unstable

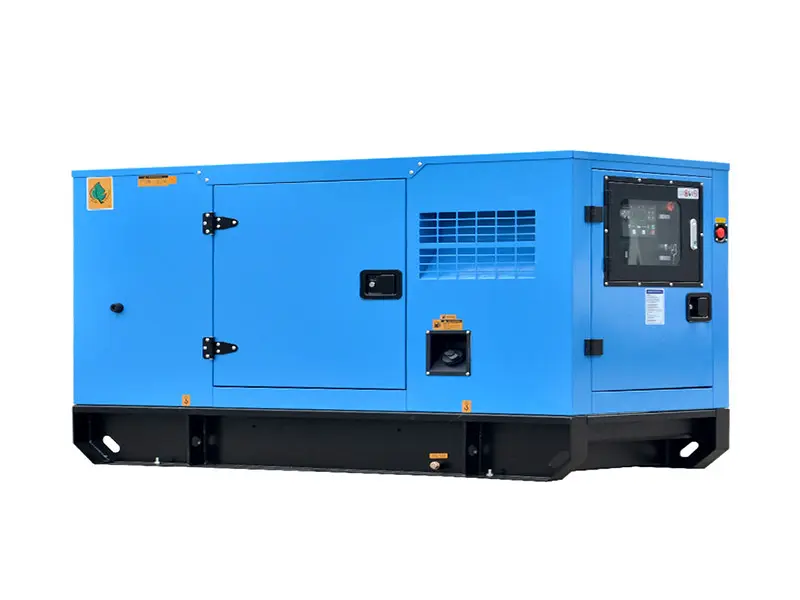

Optional silent type, easy to move.

The model of the unit	XCMG-35GF
Rated Power	28KW/35KVA
Standby power	32KW/40KVA
Rated voltage	400/230 V
Rated current	54A
Frequency/Speed	50Hz/1500RPM
The waste of fuel with full load	221g/kw.h

Detail

Features

Alternator

Control System

Control system introduction

Brand

Smartgen

Place of production

ZhengZhou

Model

HGM6110series

HGM6110series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and “three remote” (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

HGM6110series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

Mains

Generator

Line voltage (Uab, Ubc, and Uca)

Phase voltage (Ua, Ub, and Uc)

Frequency HZ

Voltage regulator type

AVR

Load

Current IA, IB, IC

Active power KW

Reactive power KVar

Apparent power KVA

Power factor PF

Generator accumulated energy kWh

Mains have functions of over/under voltage and lack of phase; Gens have functions

of over/under voltage, over/under frequency and over current;

Precision measure and display of parameters about engine

Temp. (WT)

°C/ °F both are displayed

Oil pressure (OP)

kPa/Psi/Bar are all displayed

Fuel level (FL)

Speed (SPD),

RPM

Battery Voltage (VB)

Charger Voltage (VD)

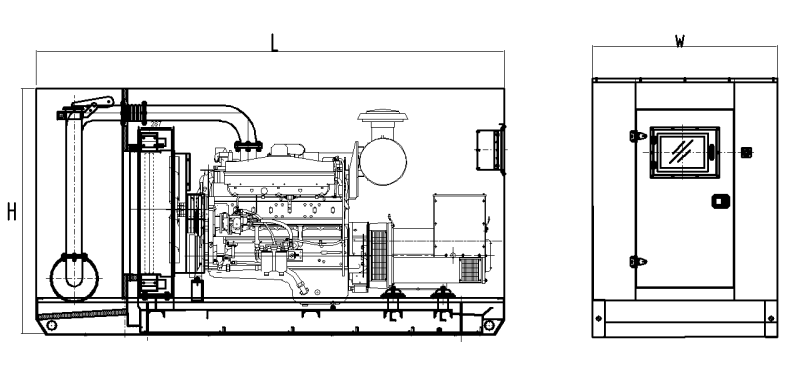

Dimensions and Weingts

Type

Open

Silent

Lenght(mm)

1800

2200

Widht(mm)

900

1000

Height(mm)

1400

1550

Weingt(kg)

720

1220

Base fuel tank volume(L)

260

Engine specification

Engine

Cummins

Brand

DCEC

Model

4BT3.9-G2

Rated Power

36KW

Standby power

40KW

No. of Cylinders

Type

4 cycle

Aspiration

Turbochanger

Standby power

50Hz/1500RPM

Bore*Storke:

102 *120MM

Displacement

3.9 L

Compression Ratio

18.0:1

Lubricating oil capacity

11L

Cooling system

16L

Starting way

DC24V starting with electricity

Alternator specification

Brand

Place of production

Jiangsu

Model

XC-35

Type

brushless

The connecting way of the phase

three phase four lines

Frequency/Speed

50Hz/1500RPM

Insulation degree

H degree

Grading Protection

IP23

Winding connection

Star

Voltage regulator type

AVR

Bearing

Single Bearing

Coating

Vacuum impregnation

coupling

Flexible disc

Low-noise box introduction

Brand

XCMG

Place of production

JiangSu

Model

XCMG40

1.Safe operation: The unit is equipped with grounding protection, emergency button, alarm system and automatic stop alarm.

2.Power interlock switch.

3.Excellent heat dissipation: efficient ventilation and cooling system to ensure adequate heat dissipation and exhaust

4.The box body design is more reasonable in material use, good in sealing and noise prevention performance, and high in waterproof and dustproof.

5.Easy to operate: integrated control, easy to operate and connect.

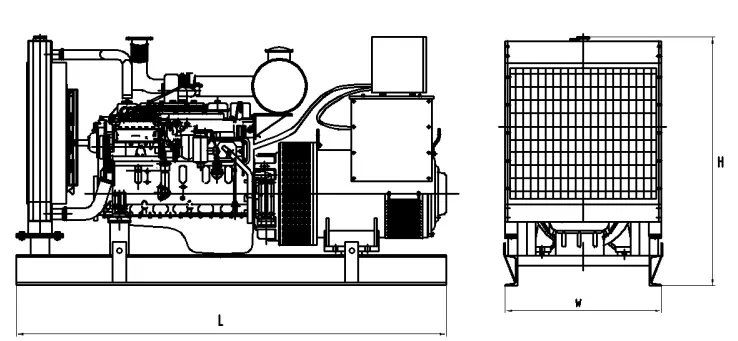

Dimensions and Weingts

Type

Open

Silent

Lenght(mm)

1800

2200

Widht(mm)

900

1000

Height(mm)

1400

1550

Weingt(kg)

720

1220

Base fuel tank volume(L)

260

ATS double power switch cabinet introduction

The ATS double power source automatic switching cabinet and the self-starting diesel generator set together form an automatic emergency power supply system. Under the automatic state, the unit automatically detects and discriminates the state of the city through the external switch signal. Once the power of the city has a fault, power loss, immediately enter the automatic start state. When the market electricity calls, it will automatically switch off the speed of the switch. When the market power returns to normal, confirmed by the system 3S, the unit automatically jumps off the network, the delay is 3 minutes(adjustable), automatically stops, and automatically enters the next auto-start readiness state.

First turn on the power key and press the "automatic" key directly. The unit will automatically start the lift at the same time. When the Hertz meter, frequency meter, and thermometer display are normal, he will automatically switch off the power and network power. Quasi-state automatic control, automatic detection of power state, automatic start of the unit, automatic grid casting, automatic network withdrawal, automatic shutdown, fault automatic trip, stop, alarm

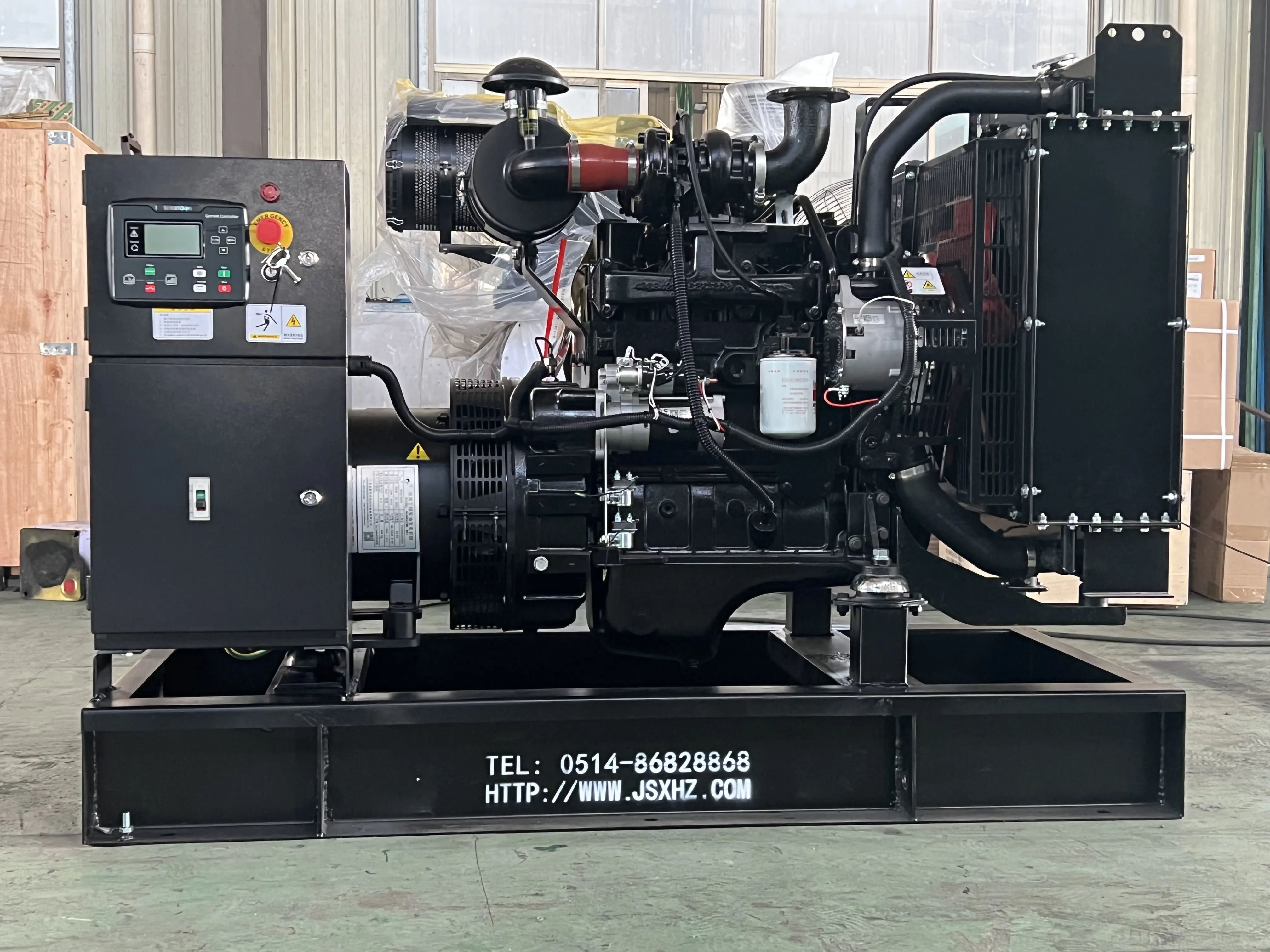

24KW30KVA Cummins series Diesel Generator (6)

Standard Features

● XHZ POWER provides one-stop service to meet all customers' needs of power generation system and components.

● All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.

● Warranty: after 1000 hours of running, or 1 year from the date of initial startup (whichever comes first).

Other Features

● Optional ATS (Automatic Transfer SwiXHZC-h) automatically swiXHZC-hes between the diesel generator and mains in the case of a power failure.

● Auto Synchronization System) enables multiple diesel generator sets to be synchronized and connected in parallel.

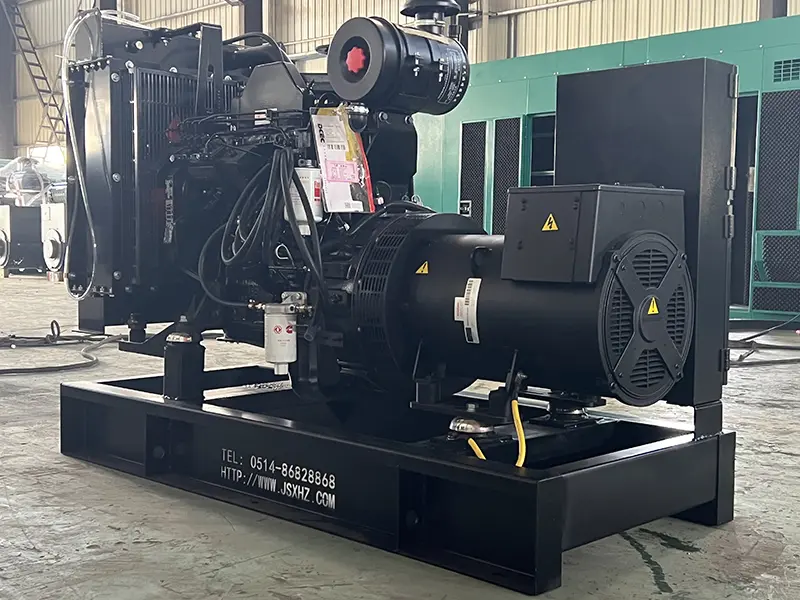

24KW30KVA Cummins series Diesel Generator (2)

Optional Alternator Brands

01

STAMFORD industrial alternators meet the requirements of the relevant parts of the IEC 60034 and the relevant sections of other international standards such as BS5000-3, ISO 8528-3, VDE 0530, NEMA MG1-32, CSA C22.2-100 and AS 60034. Other standards and certifications can be considered on request.
02

Leroy-Somer alternator has also obtained products specially designed for application in special fields or environmentsCertification from international organizations such as LCIE, DNV, INERIS, EFECTIS, UL, BSRIA, TUV, CCC, GOST, eXHZC-., ensures the quality of our products.All technical performance meets the certification standards and requirements.
03

The Marathon® brand encompasses a variaty of products and solutions, including single phase and three phase AC motors, NEMA and IEC motors, low and medium voltage motors and Generators.
04

The XHZ series generators comply with GB755, BS5000 Part III,VDE0530, NEMA MG1-32, IEC34-1, CSA C22.2-100, and AS1359.

SGC 420 CONTROLLEThe SGC 420 controller has an advanced battery charge management capability and is specially designed for AMF applications with a mechanical and electronically controlled engine

Standard Features

● Support automatic, manual and remote start/stop modes;

● Can supervise engine safety, electrical load, site battery backup voltage and shelter temperature to cut down on fuel consumption.

● The real time clock (RXHZC-) precisely logs up to 100 events and conducts data analysis.

● Auto exercise mode (2 events) allows to start and stop the generator set for for a preconfigured time.

● Built-in electronic speed governor is adopted for variable-speed monitoring.

● Able to monitor voltage, frequency, load current and power factor of the generator set.

● Provided with digital outputs of start relay, fuel relay, alarm horn and more.

● Counters for engine starts, engine trips, engine running hours, generator set kWh, kVAh, kVArh and Mains kWh, kVAh, kVArh.

Optional control system brands

DEEPSEA、COMAP、HGM....
